Microservices

Intro to Microservices, Part 4: Dependencies and Data Sharing

Learn the basics of dependency management and data sharing for microservices architectures

November 09, 2015

In this post in the microservices series we will study how to manage inter-service dependencies and how to deal with implicit interfaces in the form of data sharing. We will also extend our existing examples from the microservices series to show some of the concepts in this post. If you haven't done so, check An Introduction to Microservices, Part 3.


The problem of dependencies

As we have discussed in previous posts, one of the biggest enemies of distributed architectures are dependencies. In a microservice-based architecture, services are modeled as isolated units that manage a reduced set of problems. However, fully functional systems rely on the cooperation and integration of its parts, and microservice architectures are not an exception.

"In a microservice architecture, services are modeled as isolated units that manage a reduced set of problems."

Tweet

Tweet This

In a traditional monolithic application, dependencies usually appear as method calls. It is usually a matter of importing the right parts of the project to access their functionality. In esence, doing so creates a dependency between the different parts of the application. With microservices, each microservice is meant to operate on its own. However, sometimes one may find that to provide certain functionality, access to some other part of the system is necessary. In concrete, some part of the system needs access to data managed by other part of the system.

This is what is commonly known as data sharing: two separate parts of a system share the same data. If you are familiar with multithreaded programming you have a taste of how hard data sharing can get. However, in contrast to multithreaded applications, data sharing in a distributed architecture has its own sets of problems:

  • Can we share a single database? Does this scale as we add services?
  • Can we handle big volumes of data?
  • Can we provide consistency guarantees while reducing data-access contention using simple locks?
  • What happens when a service developed by a team requires a change of schema in a database shared by other services?

Dependencies between microservices

We will now study how some of these questions are answered in practice.

Separating concerns

Before going back to our problem of shared data and calls between services we need to take a step back and ask ourselves the obvious question: if we have these problems, could it be that we made a mistake while modeling our data or APIs? Certainly. This is why we need to talk about what we mean by separate concerns in greater detail. This can be described with the help of two concepts:

  • Loose coupling: which means microservices should be able to be modified without requiring changes in other microservices.
  • Problem locality: which means related problems should be grouped together (in other words, if a change requires an update in another part of the system, those parts should be close to each other).

In concrete, loose coupling means microservices should provide clear interfaces that model the data and access patterns related to the data sitting behind them, and they should stick to those interfaces (when changes are necessary, versioning, which we will discuss later, comes into play). Problem locality means concerns and microservices should be grouped according to their problem domain. If an important change is required in a microservice related to billing, it is much more likely other microservices in the same problem domain (billing) will require changes, rather than microservices related to, say, product information. In a sense, developing microservices means drawing clear boundaries between different problem domains, then splitting those problem domains into independent units of work that can be easily managed. It makes much more sense to share data inside a domain boundary if required than share data between unrelated domains.

Bounded contexts

The case for merging services into one

One important question you should ask yourself when working with separate microservices inside a problem domain is: are these services talking too much with eachother? If so, consider the impact of making them a single service. Microservices should be small, but no smaller than necessary to be convenient. Bam! Data sharing and dependency problems are gone. Of course, the opposite applies: if you find your services getting bigger and bigger to reduce chattiness, then perhaps you should rethink how your data is modeled, or how your problem domains are split. Trying to keep balance is the key.

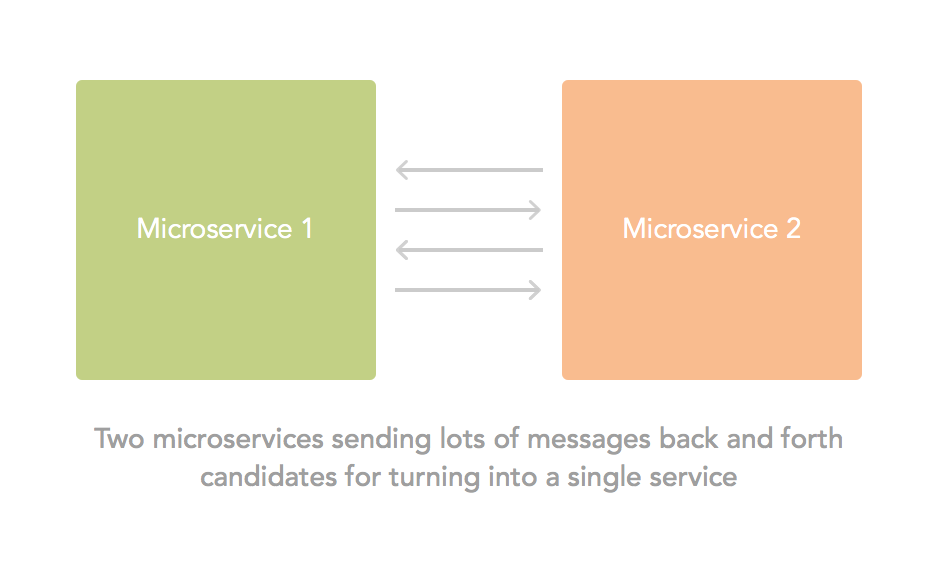

Chatty microservices

By the way, remember improving your solutions through iteration is part of the benefits of the microservices approach. Do your best effort to get things right from the beginning, but know you can make changes if things don't work out.

Data sharing

Now that we understand that data sharing may not be the only answer, we will focus on what to do when it is. We will split shared data in two groups: static data and mutable data.

Static data

Static data is data that is usually read but rarely (if ever) modified. Sometimes it is necessary to study access patterns after the system goes live before finding out what data can be considered static. The nice thing about static data is that even if it is shared, no locks or consistency algorithms are necessary. All services can read the data concurrently and not care about any other readers. However you can choose different approaches to store this data according to your needs:

  • Keep it in a database: this may or may not be a good approach according to the database you have picked. Two things to keep in mind: 1) Is it sensible to have each service query this database through the wire each time this data is required? 2) Can transactional updates to the data be performed whenever this data needs to be updated (even if it is once in a while)?
  • Embed it in the code or share it as a file: if the data is small enough, it may make sense to embed it in the code or distribute it as part of a file to be deployed with each service. Things to keep in mind: 1) How easy is it to atomically restart all services sharing this data? 2) Is it small enough to not cause performance issues when loading each service?
  • Make it into a service: similar to the database approach with the added benefit of being able to make arbitrarily complex decisions about how the data is sent over the wire and who can access it.

Mutable data

As we have mentioned before, the biggest problem with shared data is what to do when it changes. Suppose our microservice architecture is the heart of an online game distribution service. One of our microservices handles the game list of a customer. Other microservice handles the purchase of a game. When a customer purchases a game, that game is added to the list of games he or she owns. Our purchase microservice needs to tell our game-list microservice of the games that are added to a customer's list. How can we approach this problem? What follows is a list of common approaches to the problem. We will describe each and their advantages and disadvantages (note this is not an exhaustive list).

  • Shared database
  • Another microservice
  • Event/subscription model
  • Data pump model

Shared database

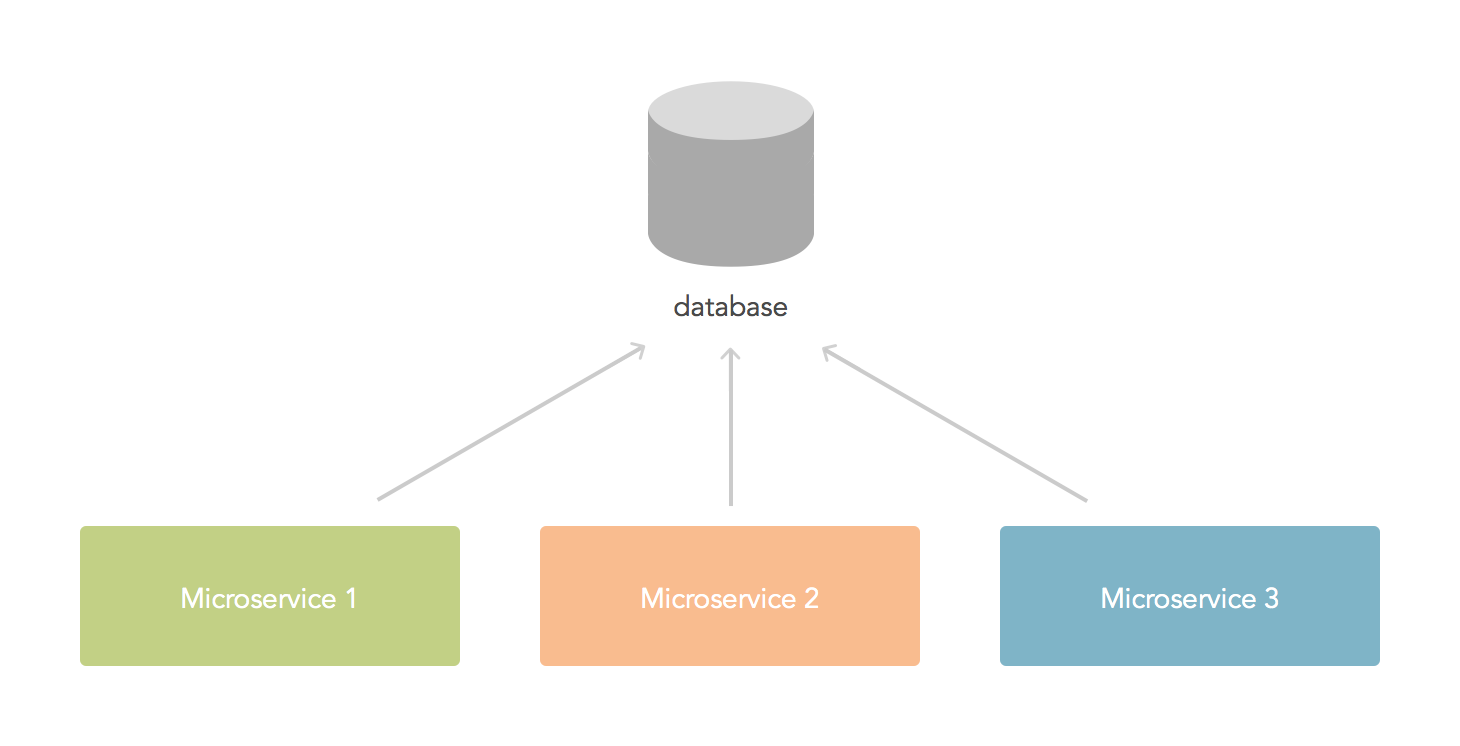

Shared database

We have noted some of the problems with the shared database approach before, so we will now focus on what we can do to avoid them. When dealing with shared data across databases (or tables within a database) there are essentially two approaches: transactions and eventual consistency.

Transactions are mechanisms that allow database clients to make sure a series of changes either happen or not. In other words, transactions allow us to guarantee consistency. In the world of distributed systems, there are distributed transactions. There are different ways of implementing distributed transactions, but in general, there is a transaction manager that must be notified when a client wants to start a transaction. Only if the transaction manager (that usually communicates this intention to other clients) allows us to move forward the transaction can be performed. The downside to this approach is that scaling is usually harder. Transactions are useful in the context of small or quick changes.

Eventual consistency deals with the problem of distributed data by allowing inconsistencies for a time. In other words, systems that rely on eventual consistency assume the data will be in an incosistent state at some point and handle the situation by postponing the operation, using the data as-is, or ignoring certain pieces of data. Eventual consistency systems are easier to reason about but not all data models or operations fit its semantics. Eventual consistency is useful in the context of big volumes of data.

When facing the problem of a shared database, try very hard to keep the data in a single place (i.e. not to split it). If there is no other option but to split the data, study the options above in detail before committing to any.

Another microservice

Microservice arbiter

In this approach rather than allowing microservices to access the database directly, a new microservice is developed. This microservice manages all access to the shared data by the two services. By having a common entry point it is easier to reason about changes in various places. For small volumes of data, this can be a good option as long as the new microservice is the only one managing the data. Consider if this is something you can do and whether the microservice can scale to your future requirements.

Event/subscription model

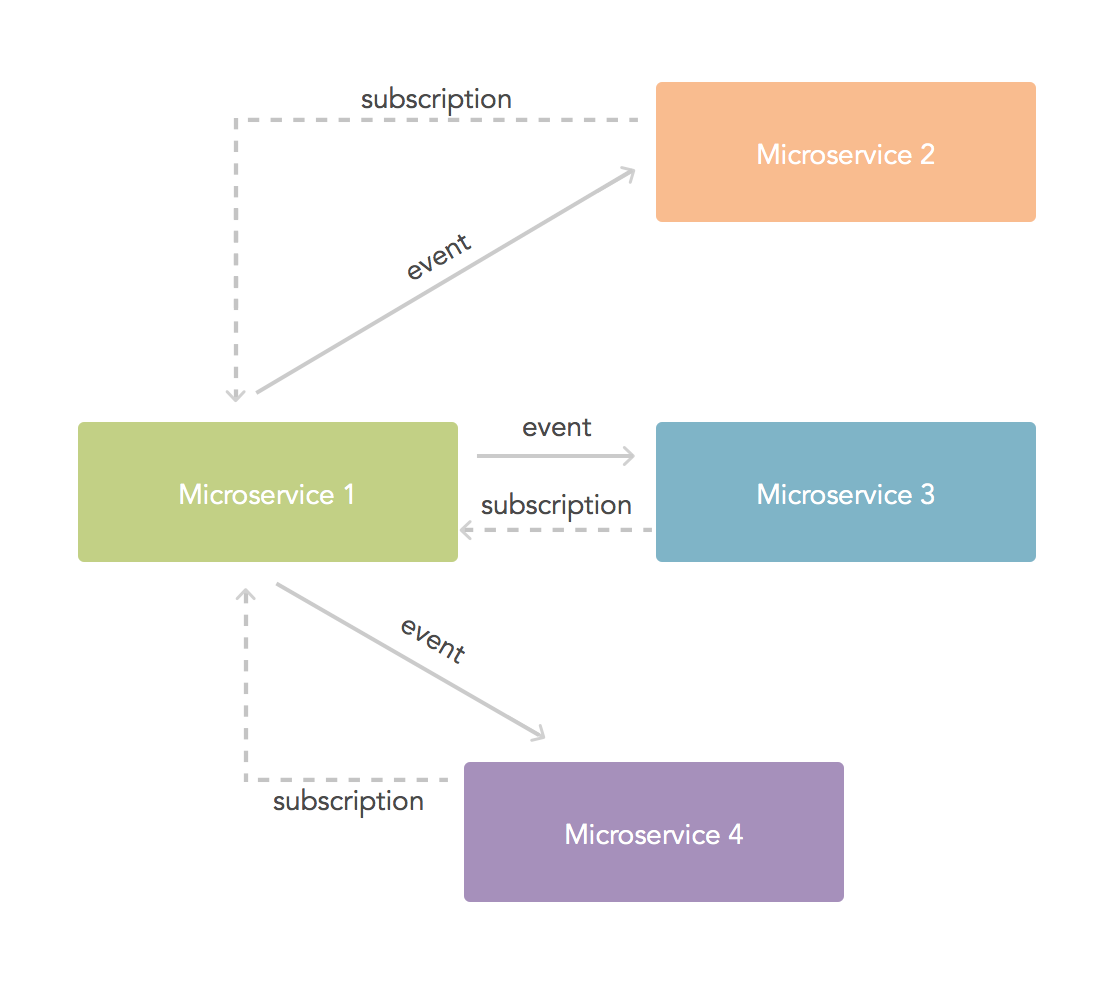

Event subscription

In this approach, rather than relying on each service fetching the data, services that make changes to data or that generate data allow other services to subscribe to events. When these events take place, subscribed services receive the notification and make use of the information contained in the event. This means that at no point any microservice is reading data that can be modified by other microservices. The simplicity of this approach makes it a powerful solution to many use cases, however there are downsides: a good set of events must be integrated into the generating microservice and lost events are a possibility. You should also consider the case of big volumes of data: the data gets sent to as many subscribers as registered.

Data pump model

Data pump to long running process

This is related to the eventual consistency case and the additional microservice case: a microservice handles changes in one part of the system (either by reading from a database, handling events or polling a service) and updates another part of the system with those changes atomically. In esence, data is pumped from one part of the system to the other. A thing to keep in mind: consider the implications of duplicating data across microservices. Remember that duplicated data means changes in one copy of the data create inconsistencies unless updates are performed to each copy. This is useful for cases where big volumes of data need to be analyzed by slow processes (consider the case of data analytics, you need recent copies of the data, but not necessarily the latests changes). For long running pumps, remember that consistency requirements are still important. One way to do this is to read the data from a read-only copy of the database (such as a backup).

Versioning and failures

An important part of managing dependencies has to do with what happens when a service is updated to fit new requirements or solve a design issue. Other microservices may depend on the semantics of the old version or worse: depend on the way data is modeled in the database. As microservices are developed in isolation, this means a team usually cannot wait for another team to make the necessary changes to a dependent service before going live. The way to solve this is through versioning. All microservices should make it clear what version of a different microservice they require and what version they are. A good way of versioning is through semantic versioning, that is, keeping versions as a set of numbers that make it clear when a breaking change happens (for instance, one number can mean that the API has been modified).

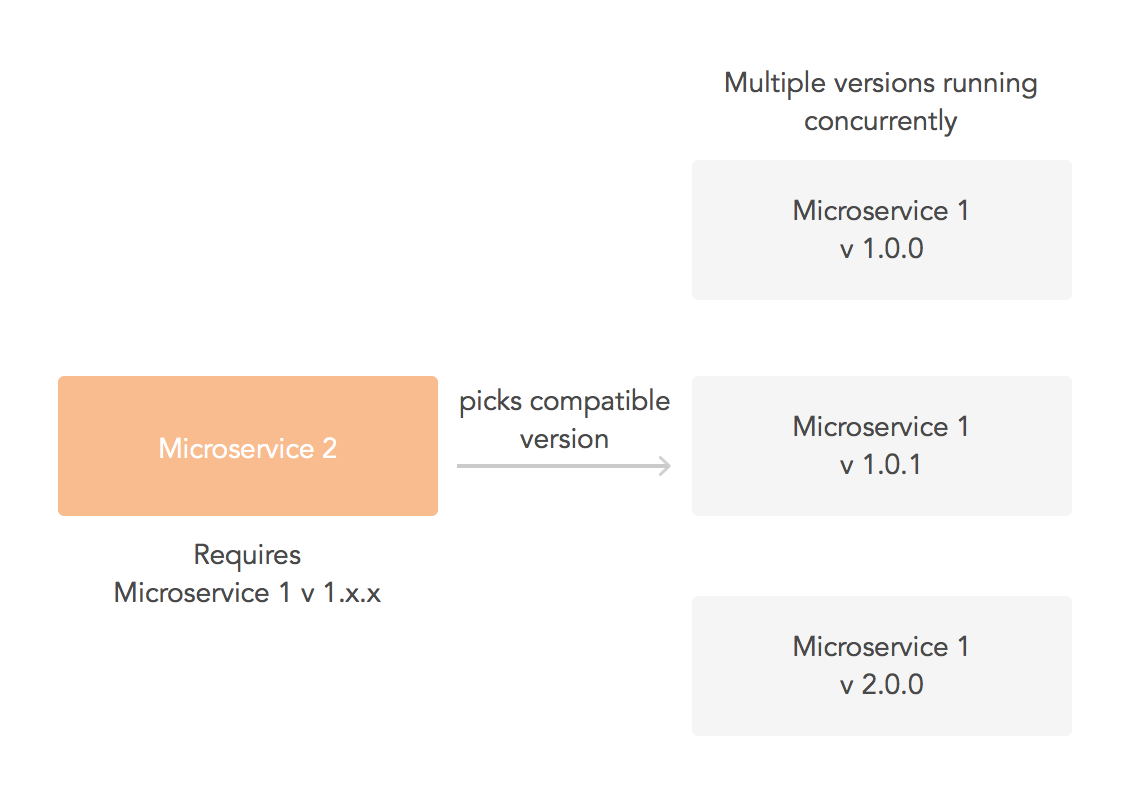

Different version of a dependency

The problem of dependency and changes (versions) rises an interesting question: what if things break when a dependency is modified (in spite of our efforts to use versioning)? Failure. We have discussed this briefly in previous posts in this series and now is good time to remember it: graceful failure is key in a distributed architecture. Things will fail. Services should do whatever is possible to run even when dependencies fail. It is perfectly acceptable to have a fallback service, a local cache or even to return less data than requested. Crashes should be avoided, and all dependencies should be treated as things prone to failure.

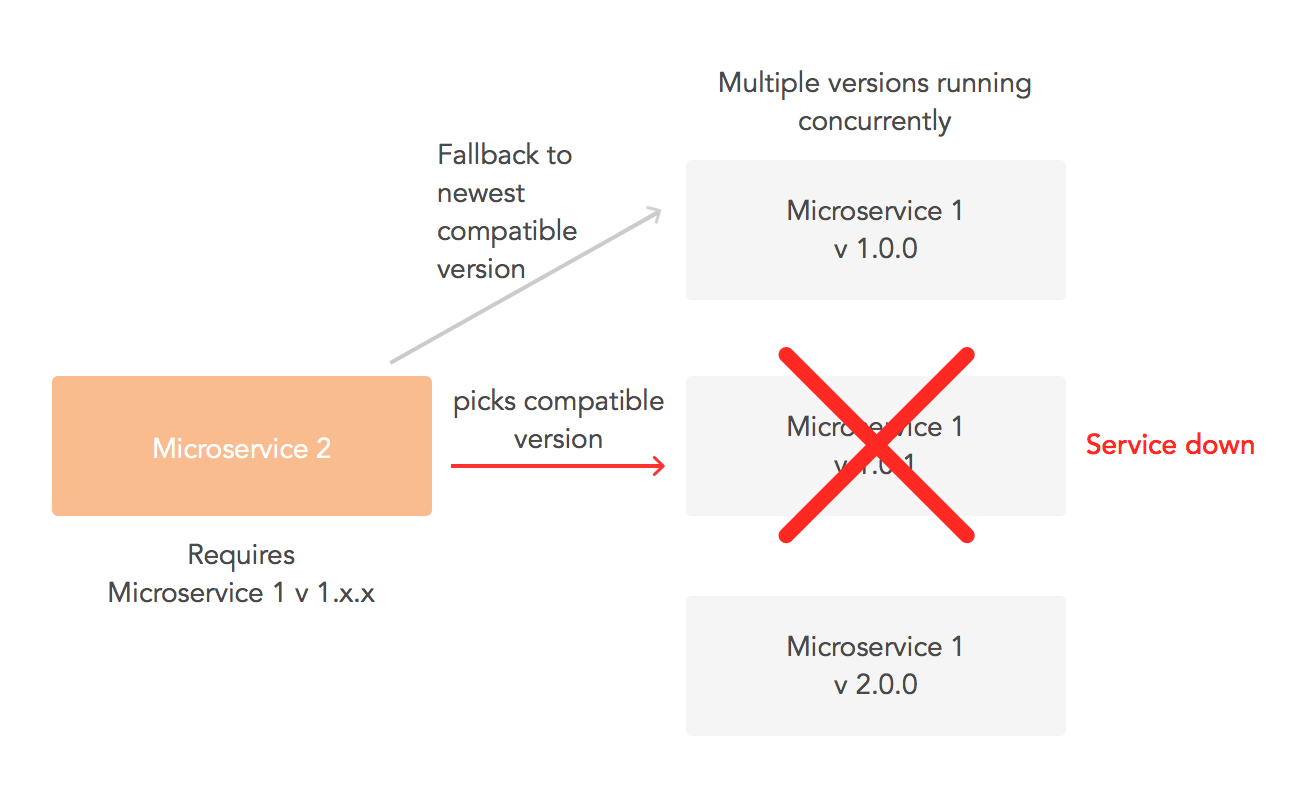

Failure of a dependency with fallback

Example: events and shared data between microservices with random failures

For our example we will create a small group of versioned microservices with fallback capabilities. As this example models the behavior of dependant microservices inside a corporate network, we will not make use of the public API gateway we developed for previous posts. However, the logic behind dynamic dispatching of services will be reused in this case to provide fallback capabilities. In other words, we have refactored the logic behind the dynamic dispatching of services from the API gateway into a library. We now use this library to provide dynamic dispatching and fallback capabilities inside our network.

Example

There are 2 services: a tickets service and a "reply feed" service. The tickets service allows adding, querying and subscribing to updates. The reply feed subscribes to the tickets service to receive new replies without querying the tickets service. Additionally the tickets service is split in two versions: 1.0.0 and 1.0.1. Version 1.0.1 is identical to 1.0.0 but causes random failures when querying tickets. When a failure is detected the system automatically falls back to the next compatible version available.

//Recursive, consider this in production. This won't be a problem
//once node.js and V8 support tail-call optimizations.
function callNext(i) {
    if(i === services.length) {
        callback(new Error("No service available"));
        return;
    }

    logger.debug('Calling ' + services[i].name + ' version: ' +
        services[i].versionMajor + '.' +
        services[i].versionMinor + '.' +
        services[i].versionPatch);

    dispatch.serviceDispatch(services[i], data,
        function(err, response) {
            if(err) {
                logger.info("Failed call to: " + services[i]);
                logger.error(err);

                callNext(i + 1);
            } else {
                logger.info("Succeeded call to: " + services[i]);

                callback(null, response);
            }
        }
    );
}

callNext(0);

Data sharing is presented in the form of the shared database between the different versions of the tickets service. Consistency is achieved through transactional guarantees provided by Mongo. Mongo guarantees that all modifications performed to a single document either happen or they don't. No client sees intermediate results.

On the other hand, data sharing between the replies service and the tickets service is achieved through the event/subscription model. As the reply feed only needs to store the latest 10 replies (this is a design requirement) a simple event for each new message can work as a solution, without requiring shared access to the tickets database.

repliesFeed.js

function subscribe() {
    var data = JSON.stringify({
        url: eventUrl
    });

    registry.call('Ticket Subscribe', 1, 0, 1, data, function(err, response) {
        if(err) {
            logger.error(err);
        }
    });
}

app.post('/replyEvent', function(req, res) {
    //TODO: validate req.body data

    logger.debug(req.body);

    latestReplies.push(req.body);
    if(latestReplies.length > 10) {
        latestReplies.splice(0, latestReplies.length - 10);
    }

    res.sendStatus(200);
});

tickets.js and tickets-random-fail.js

function notifySubscribers(data) {
    var collection = db.collection('tickets');
    var oid = new ObjectID(data.ticketId);
    collection.findOne({ '_id': oid }, { title: 1 }, function(err, ticket) {
        if(err) {
            logger.error(err);
            return;
        }

        data.title = ticket.title;
        var jsonData = JSON.stringify(data);

        logger.debug(data);

        for(var subscriber in commentSubscribers) {
            if(commentSubscribers.hasOwnProperty(subscriber)) {
                console.log('EVENT: sending new reply to subscriber: ' +
                    subscriber);
                dest = url.parse(subscriber);

                var req = http.request({
                    hostname: dest.hostname,
                    port: dest.port,
                    path: dest.path,
                    method: 'POST',
                    headers: {
                        'Content-Type': 'application/json',
                        'Content-Length': jsonData.length
                    }
                });

                req.on('error', function(err) {
                    logger.error(err);
                });

                req.write(jsonData);
                req.end();
            }
        }
    });
}

The example is completed by a simple process that accesses these services and logs everything to console. The logs show when a service falls back to a different version and when an event is sent. Get the full code. To run it deploy an empty Mongo database to the db directory and insert the tickets from tickets.json into the tickets collection. Then run test.js and watch the logs.

Please note all of the code in this example is just that: an example. Do not consider this production ready. Run your own tests :)

Aside: webtasks are microservices

As we have shown in previous posts, webtasks are microservices. Our architecture relies heavily on webtasks and it is easy to turn one of the above microservices into a webtask. Check it out and create your own webtasks. Try to turn one of the examples into a webtask and then push it with wt. Remember webtasks do not support require commands to files in the same directory, so you will need to embed the code in a single .js file. Database connections must be performed against a publicly accessible server.

wt create repliesFeedAsWebtask.js
# Wait a bit and then run
wt logs

Conclusion

Dependencies are hard, moreso in a distributed architecture. Data sharing and interservice calls should be kept to a minimum if possible. If you cannot avoid them, consider the implications of turning multiple services into one. If that is not the right choice, study what kind of data you are sharing (static or mutable) and what are the proper ways of sharing it according to your current and future use cases (volume of data, scaling considerations, algorithmic and implementation complexity, consistency requirements, etc.). Remember that you can and you should make modifications to your architecture as you find better ways of doing things. Microservices favor iteration, use it to your advantage and avoid integration patterns that prevent future modifications.
