Background Processing in Android

TL;DR: Android apps use the main thread to handle UI updates and operations (like user input). Running long-running operations on the main thread can lead to app freezes, unresponsiveness and thus, poor user experience. To mitigate this, long-running operations should be run in the background. Android has several options for running tasks in the background and in this article, we'll look at the recommended options for running different types of tasks.

Prerequisites

To follow along with this tutorial, you should have Java Development Kit 8 (JDK 8) or higher installed on your computer. If you don't have it, follow the instructions here to download and install a JDK.

Second, we recommend you install Android Studio, the official Integrated Development Environment (IDE) for Android. You can download Android Studio from this resource. You can use another IDE if you prefer, like IntelliJ, but we will only include instructions for Android Studio.

Lastly, you should have some knowledge of Java and Android development. You don't need to be an expert, you just need the basic knowledge of how Android apps work — if you have a basic understanding of working with Android Views, handling events, navigating between Views, then you should be fine.

You can find the code used in the tutorial in this repository. There are 5 folders containing code for the different sections:

00 starter project: This is the starting point of the other projects in the folder. It's the default Android app that you get when you follow the Android Studio prompts for creating an app with an Empty Activity.
01 threading: Project with the code from the Threading section.
02 workmanager: Project with the code from the WorkManager section.
03 alarmmanager: Project with the code from the AlarmManager section.
04 auth0 integration: Project with the code from the Securing an Android Application with Auth0 section.

Introduction

An app might need to perform long-running tasks such as downloading/uploading files, syncing data from a server and updating the local database, executing expensive operations on data, working on machine learning models, decoding bitmaps, etc. Android apps use the main thread to handle UI updates and operations (like user input). Running long-running operations on the main thread can lead to app freezes, unresponsiveness, and thus, poor user experience. If the UI thread is blocked for too long (about 5 seconds currently, for Android 11 and below), an Application Not Responding (ANR) error will be triggered. What's more, there are some operations (like network operations) that will cause an Exception to be raised if you try to run them on the main thread.

To mitigate this, long-running operations should be run in the background. Android has several options for running tasks in the background and in this article, we'll look at the recommended options for running different types of tasks.

Background tasks fall into the following categories:

Immediate: This describes tasks that should end when the user leaves a certain scope or finishes an interaction. For these, you should create a separate Thread to run the task on. If you're using Kotlin, coroutines are recommended.
- Deferred: This describes tasks that can be executed immediately or at a deferred time. For instance, if there is a task that needs to start running immediately, but might require continued processing even if the user exits the application or the device restarts, or if there is a task that should run in the future. The recommended solution for deferred tasks is the WorkManager API.
- Exact: This describes tasks that need to run at a particular time. The recommended option to schedule such tasks is the AlarmManager.

Threading

When an Android application is launched, the system creates a main thread that is in charge of dispatching events to user interface widgets, including drawing events. This is the thread in which the application almost always interacts with components from the Android UI toolkit (components from the android.widget and android.view packages). Because of this, it's sometimes referred to as the UI thread.

As mentioned, to keep your app responsive, you shouldn't run long-running tasks on the main thread. For immediate tasks that should end when the user leaves a certain scope or completes an interaction, you should spawn up another Thread (referred to as a background/worker thread) and run the task there. Let's look at an example.

Starting from the starter project, open

activity_main.xml

and replace the

TextView

with an

ImageView

. We'll load an image from the internet onto the ImageView.

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <ImageView
        android:id="@+id/image"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>

</androidx.constraintlayout.widget.ConstraintLayout>

The app will access the internet, so we need to include internet permissions in the manifest file. Open

AndroidManifest.xml

and add the following permissions:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.backgroundprocessing">

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

    <application
        ...
    </application>

</manifest>

In the

MainActivity.java

, add the following code to the

onCreate()

method and run the app on either a phone or emulator.

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);

    final ImageView imageView = findViewById(R.id.image);

    try {
        InputStream inputStream = new java.net.URL("https://raw.githubusercontent.com/echessa/imgs/master/auth0/android_background_processing/android_jelly_bean.png").openStream();
        Bitmap bitmap = BitmapFactory.decodeStream(inputStream);

        imageView.setImageBitmap(bitmap);
    } catch (Exception e) {
        e.printStackTrace();
    }
}

The app runs, but no image is loaded — you'll get a blank screen.

In the code above, we try to run a network operation (a potentially long-running task) on the main thread. The code is meant to open an input stream to a URL and decode the raw data from that stream into a bitmap which can then be loaded onto an ImageView. When the app is started, the image doesn't load no matter how long we wait. In fact, an Exception is thrown that would cause our application to crash if it hadn't been caught in a try-catch statement.

If we take a look at the stack trace in logcat, we'll see that

NetworkOnMainThreadException

has been thrown. It is thrown when an application tries to perform a network operation on the main thread. It is only thrown in apps using the Honeycomb SDK or higher. On the other hand, apps using earlier SDKs can run network operations on the main thread, but it's still discouraged.

To fix our code, let's create another Thread to run the network task on. Modify the code as shown:

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);

    final ImageView imageView = findViewById(R.id.image);

    new Thread(new Runnable() {
        @Override
        public void run() {
            try {
                InputStream inputStream = new java.net.URL("https://raw.githubusercontent.com/echessa/imgs/master/auth0/android_background_processing/android_jelly_bean.png").openStream();
                Bitmap bitmap = BitmapFactory.decodeStream(inputStream);

                imageView.post(new Runnable() {
                    @Override
                    public void run() {
                        imageView.setImageBitmap(bitmap);
                    }
                });
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }).start();
}

We create a new

Thread

, passing it an instance of

Runnable

Runnable

is an interface that is implemented by a class whose instances are to be run on a created thread. When the created thread is started, the Runnable's

run()

method is called. As a result, the code will be executed in a separate thread. In our app, we use that method to make a network request, grab the stream data of an image and decode it into a Bitmap.

After creating a Bitmap with the data from the network call, we don't load it into the ImageView in the background thread. We can only update Views from the original thread that created the view hierarchy, i.e. the main thread. If we tried to update the view from a background thread, a

CalledFromWrongThreadException

would be thrown.

Android offers several ways to access the UI thread from other threads:

Activity.runOnUiThread(Runnable)): This runs the Runnable on the UI thread. If the current thread is the UI thread, the action is executed immediately, otherwise, it is posted to the event queue of the UI thread.
View.post(Runnable)): Adds the Runnable to the message queue. The Runnable will be run on the UI thread.
View.postDelayed(Runnable, long)): Adds the Runnable to the message queue, to be run after the specified amount of time elapses. The Runnable will be run on the UI thread.

We use

View.post(Runnable)

to run the code that updates the ImageView on the main thread. If we run the app, we should see an image loaded on the screen.

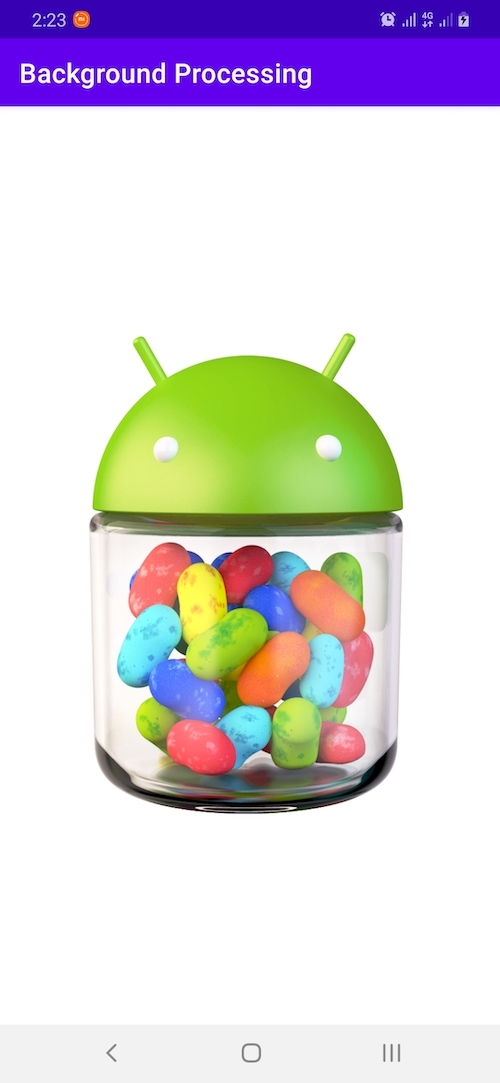

Image loaded on view

Our example is just a simple app that only requires one background thread. In a production app, if we need to handle several asynchronous tasks, it would be better to use a thread pool. Thread pools offer many benefits such as improved performance when executing a large number of asynchronous tasks, and a way to manage the resources consumed when executing several tasks.

You can also consider using some popular libraries that offer some abstraction over lower-level threading classes. They make it easier to create and manage threads as well as pass data between threads. For Java, two popular libraries are Guava and RxJava and if you are using Kotlin, coroutines are recommended.

WorkManager

Next, let's look at the

WorkManager

, which is part of Android Jetpack and is an Architecture Component. It is the recommended solution for background work that is deferrable and requires guaranteed execution. Deferrable in that, the task doesn't need to run/complete immediately and guaranteed execution, meaning, the task will be run even if the user navigates away from a particular screen or exits the app or if the device restarts.

To use WorkManager, first add the following dependency in the

app/build.gradle

file and click Sync Now to sync the project with the modified gradle files. We add the latest version of the WorkManager at the time of writing, but you should check the documentation to get the latest version when working on your projects.

dependencies {
    ...
    implementation 'androidx.work:work-runtime:2.5.0'
}

Before we write any code, let's first go over some basics regarding WorkManager. Below are some classes we'll be working with:

Worker: A class that performs work synchronously on a background thread provided by
```
WorkManager
```
. To create a worker, we extend the class and override the
```
doWork()
```
method. Here, we place the code that we want to run in the background.
WorkRequest: The base class for specifying parameters for work that should be enqueued. It represents a request to do some work. When instantiating it, we need to pass in the worker that we want to run. In addition, we can also include other optional settings like Constraints (we'll look at this later), which affect how the worker will run.
WorkManager: This enqueues deferrable work that is guaranteed to execute sometime after its Constraints are met. It schedules our WorkRequest and makes it run in a way that spreads out the load on the system resources while honoring the specified constraints.

With that out of the way, let's get to coding.

Running a Task with the WorkManager

Starting from the starter project, open

activity_main.xml

and replace the

TextView

with the

Button

below. The app will have a single button in the middle of the screen that will be used to trigger the background job.

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <Button
        android:id="@+id/button"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Upload"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

First, let's create our Worker. Create a class named

UploadWorker

and modify it as shown below:

package com.example.backgroundprocessing;

import android.content.Context;
import android.util.Log;

import androidx.annotation.NonNull;
import androidx.work.Worker;
import androidx.work.WorkerParameters;

public class UploadWorker extends Worker {

    private static final String TAG = UploadWorker.class.getName();

    public UploadWorker(@NonNull Context context, @NonNull WorkerParameters workerParams) {
        super(context, workerParams);
    }

    /**
     * Do your background processing here. doWork() is called on a
     * background thread - you are required to synchronously do your work and return the
     * Result from this method. Once you return from the
     * method, the Worker is considered to have finished what it's doing and will be destroyed. If
     * you need to do your work asynchronously on a thread of your own choice, see ListenableWorker.
     *
     * A Worker is given a maximum of ten minutes to finish its execution and return a
     * Result. After this time has expired, the Worker will be signaled to stop.
     */
    @NonNull
    @Override
    public Result doWork() {
        Log.d(TAG, "Uploading files to the server...");

        int count = 0;

        for(int i = 1; i <= 500000000; i++){
            if (i % 50000000 == 0) {
                count += 10;
                Log.d(TAG, "uploading... " + count + "%");
            }
        }

        return Result.success();
    }
}

In a real-world situation, the UploadWorker would probably be uploading something to some server, but that is out of the scope of this tutorial. To keep the tutorial short and focused on the subject, we won't be including code that does actual uploading. Instead, we are running a long loop that is supposed to simulate upload progress — it logs out the progress percentage every few moments.

When we extend

Worker

, the only two requirements are that we include a default constructor and override the

doWork()

method, where we place the code that should be run in a background thread. At runtime, the Worker class will be instantiated by our WorkManager and the

doWork()

method will be called on a pre-specified background thread.

The method returns a

Result

which you can use to indicate the result of your background work. In our real app, we could have returned different results (

success()

failure()

) based on the success or failure of the operation, or

retry()

if the app was unable to connect to the server in the first place.

Once a

Result

is returned from the

doWork()

method, the Worker is considered finished and will be destroyed. The

doWork()

method is called exactly once per Worker instance. Furthermore, if a unit of work needs to be rerun, a new Worker must be created. Currently (Android 11 and below), Workers have a maximum of 10 minutes to complete their execution and return a Result, otherwise, the Worker will be signaled to stop.

Now that we specify a work to do, let's head over to the

MainActivity.java

to create the WorkManager that will run it in the background.

package com.example.backgroundprocessing;

import androidx.appcompat.app.AppCompatActivity;
import androidx.lifecycle.Observer;
import androidx.work.OneTimeWorkRequest;
import androidx.work.WorkInfo;
import androidx.work.WorkManager;

import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {

    private static final String TAG = MainActivity.class.getName();

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        final Button button = findViewById(R.id.button);
        final OneTimeWorkRequest workRequest = new OneTimeWorkRequest.Builder(UploadWorker.class).build();

        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                WorkManager.getInstance(v.getContext()).enqueue(workRequest);
            }
        });

        // Get the work status
        WorkManager.getInstance(getApplicationContext()).getWorkInfoByIdLiveData(workRequest.getId())
                .observe(this, new Observer<WorkInfo>() {
                    @Override
                    public void onChanged(WorkInfo workInfo) {
                        Log.d(TAG, "Worker status: " + workInfo.getState().name());
                    }
                });
    }
}

We trigger the background job in the app with a click on the button we added earlier. When the button is pressed, we create a

OneTimeWorkRequest

and enqueue it with an instance of the

WorkManager

There are two types of WorkRequests:

OneTimeWorkRequest: A WorkRequest that will only execute once.
PeriodicWorkRequest: A WorkRequest that will repeat on a cycle.

Optionally, you can get the current lifecycle state of your

WorkRequest

. The

WorkInfo

class holds information about a particular

WorkRequest

including its id, current

WorkInfo.State

, output, tags, and run attempt count. We call

WorkInfo.getState()

to get the state of our

WorkRequest

whenever the state changes and log it out. The state can be

ENQUEUED

RUNNING

SUCCEEDED

FAILED

BLOCKED

CANCELLED

When we start the app and press the Button, the following output can be seen in logcat:

Worker status: ENQUEUED
Worker status: RUNNING
uploading... 10%
uploading... 20%
uploading... 30%
uploading... 40%
uploading... 50%
uploading... 60%
uploading... 70%
uploading... 80%
uploading... 90%
uploading... 100%
Worker status: SUCCEEDED

Setting Constraints

We can define Constraints that have to be met for the

WorkRequest

to be run. For example, we can create a constraint that requires network availability for a background job that has to access the internet.

Below, we add two constraints to our app that ensure the background task will only be run when the device can access the internet and its battery isn't low. Available Constraints include:

setRequiredNetworkType

setRequiresBatteryNotLow

setRequiresCharging

setRequiresDeviceIdle

and

setRequiresStorageNotLow

Constraints constraints = new Constraints.Builder()
        .setRequiredNetworkType(NetworkType.CONNECTED)
        .setRequiresBatteryNotLow(true)
        .build();

final OneTimeWorkRequest workRequest = new OneTimeWorkRequest.Builder(UploadWorker.class)
        .setConstraints(constraints)
        .build();

To test it, take your device offline (assuming the battery isn't low) and then press the button that triggers the background task. If you check logcat, you will see the

Worker status: ENQUEUED

log but not the other logs that were output when the worker was running and when it was completed. Turn the internet back on and the other logs will be output. If you are using an Emulator, you can turn the internet off as you would on a real device by turning on Airplane Mode or by turning off Wi-fi. You can also simulate different battery statuses by changing Battery configurations. Use the Extended Controls menu to reveal an Extended Controls panel that you can use to configure options such as Location, Cellular, Battery, etc. Use the Battery settings to turn the battery level low.

AlarmManager

If we want our app to run a task at a specific time, even if the app isn't currently running or the device is asleep at that point in time, the AlarmManager is a way to go. There are multiple use cases for that solution such as a Calendar app that needs to display a notification for a reminder at a certain time, an app that needs to sync with an online database once a day or at specific times in the day, an Alarm app, etc.

To use the AlarmManager, we first define an

Intent

(an abstract description of an operation to be performed). Next, we use it to create a

PendingIntent

which can then be registered with an

AlarmManager

. Finally, the

AlarmManager

will launch the

PendingIntent

at the specified time or intervals. We can cancel a registered alarm and the

Intent

will no longer be run.

Let's see this in action. To get started, open the

activity_main.xml

file of the starter project and modify it as shown below. We add a switch to the app that will be used to turn the alarm on or off.

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.appcompat.widget.SwitchCompat
        android:id="@+id/alarmSwitch"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

Next, we'll create a

BroadcastReceiver

Right-click on the package folder that contains

MainActivity.java

and select New > Other > Broadcast Receiver from the menu. This will bring up the following window that we can use to generate a

BroadcastReceiver

with some pre-written code. Change the class name to

AlarmReceiver

and uncheck the Exported checkbox — we don't need the broadcast receiver invoked by other apps.

Generate Broadcast Receiver

On clicking Finish, an

AlarmReceiver.java

file will be generated containing the

BroadcastReceiver

code. What's more, the receiver will be registered in the AndroidManifest file:

<receiver
        android:name=".AlarmReceiver"
        android:enabled="true"
        android:exported="false"></receiver>

Now, let's modify the

AlarmReceiver.java

file as shown below.

package com.example.backgroundprocessing;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.util.Log;

public class AlarmReceiver extends BroadcastReceiver {

    private static final String TAG = BroadcastReceiver.class.getName();

    @Override
    public void onReceive(Context context, Intent intent) {
        // This method is called when the BroadcastReceiver is receiving
        // an Intent broadcast.
        Log.d(TAG, "onReceive: Running recurring task");
    }
}

BroadcastReceivers receive and handle Intents that have been broadcasted. In the

onReceive()

method we add the code that should be run when

AlarmManager

launches our

Intent

. To keep things simple, we simply log out a message.

Finally, let's make the following changes to the

MainActivity.java

package com.example.backgroundprocessing;

import androidx.appcompat.app.AppCompatActivity;
import androidx.appcompat.widget.SwitchCompat;

import android.app.AlarmManager;
import android.app.PendingIntent;
import android.content.Intent;
import android.os.Bundle;
import android.widget.CompoundButton;

public class MainActivity extends AppCompatActivity {

    private AlarmManager manager;
    private PendingIntent pendingIntent;
    private static final int REQ_CODE = 0;
    private String switchText;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        final SwitchCompat alarmSwitch = findViewById(R.id.alarmSwitch);

        Intent alarmIntent = new Intent(this, AlarmReceiver.class);

        boolean alarmOn = (PendingIntent.getBroadcast(this, REQ_CODE, alarmIntent, PendingIntent.FLAG_NO_CREATE) != null);
        alarmSwitch.setChecked(alarmOn);
        switchText = alarmOn ? "Alarm On" : "Alarm Off";
        alarmSwitch.setText(switchText);

        manager = (AlarmManager)getSystemService(ALARM_SERVICE);

        alarmSwitch.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
                if (isChecked) {
                    pendingIntent = PendingIntent.getBroadcast(getApplicationContext(), REQ_CODE, alarmIntent, PendingIntent.FLAG_UPDATE_CURRENT);
                    manager.setInexactRepeating(AlarmManager.RTC_WAKEUP, System.currentTimeMillis(), 60000, pendingIntent);
                    switchText = "Alarm On";
                } else {
                    if (pendingIntent == null) {
                        pendingIntent = PendingIntent.getBroadcast(getApplicationContext(), REQ_CODE, alarmIntent, PendingIntent.FLAG_UPDATE_CURRENT);
                    }
                    manager.cancel(pendingIntent);
                    pendingIntent.cancel();
                    switchText = "Alarm Off";
                }
                buttonView.setText(switchText);
            }
        });
    }
}

When the app launches, we get a reference to the Switch that we added to the layout file. We then create an

Intent

for the

AlarmReceiver

class.

Next, we check whether there is a

PendingIntent

(with a specific

RequestCode

and our previously defined

Intent

) that has been broadcast. We check this to determine whether a previous alarm has been set by the app.

boolean alarmOn = (PendingIntent.getBroadcast(this, REQ_CODE, alarmIntent, PendingIntent.FLAG_NO_CREATE) != null);

PendingIntent.getBroadcast()

returns an existing or new

PendingIntent

matching the given parameters. When called with the

FLAG_NO_CREATE

flag, it will return the described

PendingIntent

if it exists, or

null

otherwise.

We check whether a previous

PendingIntent

was broadcasted so we can set the state of the Switch (on/off) as well as its text.

We then instantiate an

AlarmManager

and set an on checked listener on the switch to react to user input. Inside it, we set the value of the

PendingRequest

field when the user turns on the switch. We call

PendingIntent.getBroadcast()

with the

FLAG_UPDATE_CURRENT

flag which will return the described

PendingIntent

if it already exists and create a new one if it doesn't.

Next, we use the

AlarmManager

to set an inexact repeating alarm. The

AlarmManager

has several methods that we can use to set different alarms, e.g.

setExact()

that schedules an alarm that will be run at an exact time,

setWindow()

that schedules an alarm that will be run within a given window of time,

setRepeating()

that schedules repeating alarms, etc. Check the documentation for a complete list of all the alarms you can set.

With

setInexactRepeating()

alarms as opposed to

setRepeating()

, Android synchronizes repeating alarms from multiple apps and fires them at the same time which reduces the total number of times the system will wake up the device to run a task which reduces battery drain. As of Android 4.4 (API 19), all repeating alarms are inexact. If your app needs precise delivery times you can use one-time exact alarms and reschedule them as necessary.

The first argument of

setInexactRepeating()

is the alarm type which we set to

AlarmManager.RTC_WAKEUP

. There are two general alarm types: Elapsed Realtime which uses the time since system boot as a reference and Real Time Clock which uses UTC time. The two types have two variants: one that won't wake up the CPU to run the task and a "wakeup" version that will. With the former, when the CPU is asleep, the alarm will be fired when the device is next awake. The four alarms you can set are

ELAPSED_REALTIME

ELAPSED_REALTIME_WAKEUP

RTC

, and

RTC_WAKEUP

The second argument of

setInexactRepeating()

is the time in milliseconds that the alarm should first go of. The third argument is the interval between alarms. The final one is the action to take when an alarm fires which will come from the

PendingIntent

that we pass in. We use

as the interval which is the minimum you can set. Lower intervals will default to

. What that means is that our task will be run every minute. Remember, since it is an inexact alarm, it won't exactly repeat every minute but the repetitions will roughly be close to that.

We then set the text that will be used for the switch to show that the alarm has been turned on.

In the switch's on click listener, when the user turns off the switch, we first check if

pendingIntent

null

. This will be null if, for instance, the user turned on the alarm, exited the app and launched it again. In this case, when the app launches,

pendingIntent

will be created again, so we need to grab the existing

PendingIntent

and assign it to the field.

We then cancel the alarm with the matching

Intent

as the passed in

PendingIntent

and cancel the

PendingIntent

as well. After that, we set the text that will be used on the switch to indicate that the alarm is off.

When we run the app, we will be able to switch the alarm on and off.

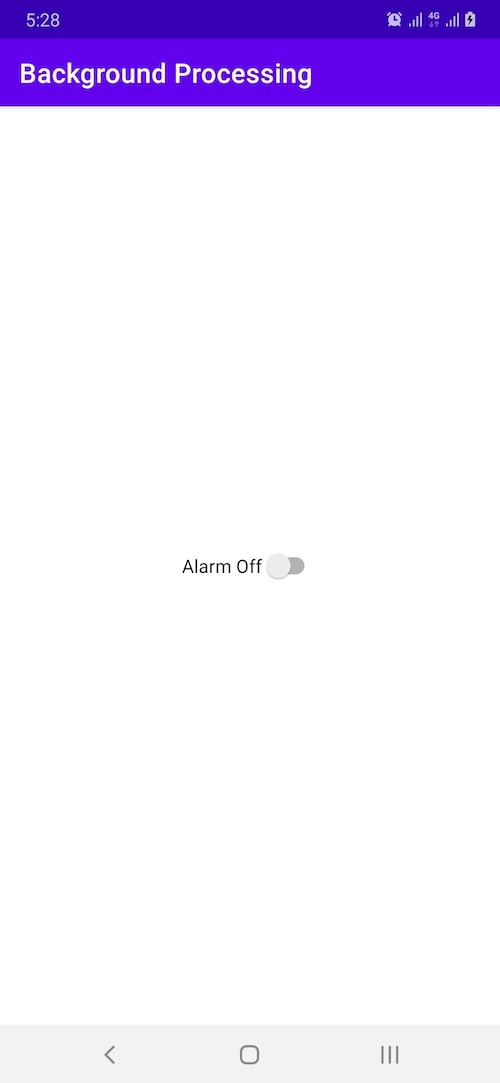

Alarm off

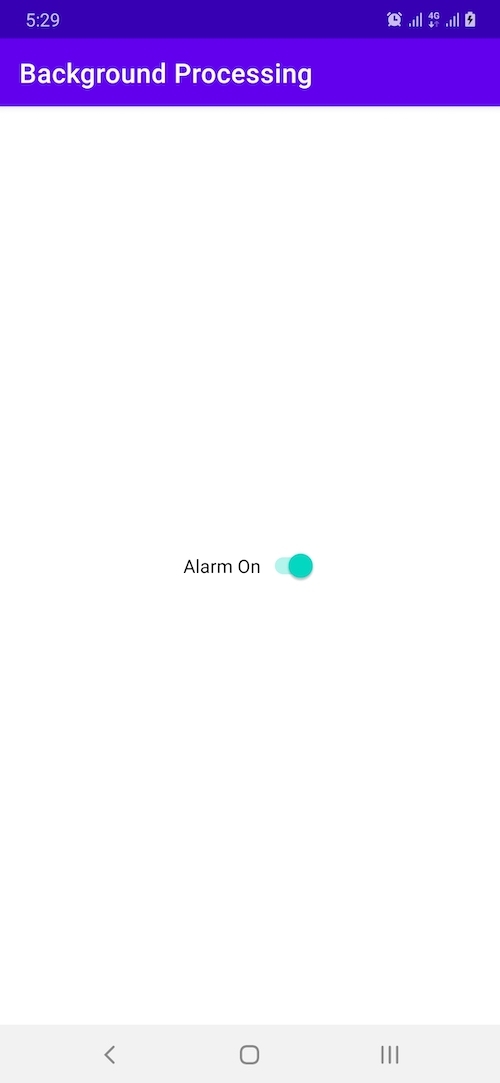

Alarm on

When the alarm is on, we should be able to see the following log in logcat:

onReceive: Running recurring task

The message will be logged every minute even if we press back and exit the app. If we launch the app again, we will be able to see from the UI, that the alarm is still on and if we switch it off, the log messages will stop. With the alarm switched off, if we exit the app and launch it again, the UI will still display the correct state of the app — that the alarm is off.

A couple of things to be aware of about alarms:

Alarms don't fire when the device is idle in Doze mode. Scheduled alarms are deferred until the device exits Doze. The system periodically exits Doze for brief moments to let apps complete their deferred activities (pending syncs, jobs and alarms, and lets apps access the network). If we need to ensure that our work completes even if the device is idle we can use
```
setAndAllowWhileIdle()
```
or
```
setExactAndAllowWhileIdle()
```
.
Registered alarms do not persist when the device is turned off. We should design our app to automatically restart its repeating alarms on device reboots. This is beyond the scope of this tutorial, but you can check the documentation on how to do this.

Securing an Android Application with Auth0

To finish off, we are going to see how you can include Auth0 authentication in an Android application.

The starter project contains one Activity that displays a "Hello World" TextView when run. We want to protect this view and have it require authentication to be accessed. To do this, we'll add a Login Activity that will be shown to the user if they aren't authenticated so that they can log in first. Next, they will be redirected to the Main Activity. The tutorial will show how to authenticate with Auth0 as well as how to work with stored sessions that will allow you to authenticate the user without having them enter their credentials every time they launch your app.

You will also see how to store session data that will enable you to get the user's profile details no matter which Activity you are on. In Main Activity, we will replace the "Hello World" text with the email of the user.

Add Auth0 to an Android App

We'll be integrating Auth0 into the starter project. To get started, first head over to Auth0 and create an account if you don't have one. Once logged in, open the Dashboard and create an application with the Create Application button.

Create application button

In the dialog window that pops up, give the application a name and select Native as the application type and click Create.

Create application

We need to configure the application before we can use it in our app. On the Dashboard, click on Applications on the panel on the left of the page to display a list of your applications. Select the application you just created and you'll see a page displaying Settings for the app.

Set the values of Allowed Callback URLs and Allowed Logout URLs to the one shown below replacing

YOUR_AUTH0_DOMAIN

with the Domain shown in your Settings. Replace the app domain if you didn't start with the starter project.

demo://YOUR_AUTH0_DOMAIN/android/com.example.backgroundprocessing/callback

Back in your project, add the following strings to the

strings.xml

file replacing in your Auth0 app Domain and Client ID

<resources>
    ...
    <string name="auth0_client_id">YOUR_AUTH0_CLIENT_ID</string>
    <string name="auth0_domain">YOUR_AUTH0_DOMAIN</string>
    <string name="com_auth0_scheme">demo</string>
</resources>

The third string adds

demo

as the value of

com_auth0_scheme

, we'll use this later in the call to Auth0 to indicate that that is the scheme we are using on the redirect URL, which is what we used when we set callback and logout URLs. The default scheme is

https

, but you can specify your own custom scheme.

Next, add Auth0's SDK into your

app/build.gradle

file:

dependencies {
  ...
  implementation 'com.auth0.android:auth0:2.+'
}

In the same

app/build.gradle

file, add manifest placeholders required by the SDK. The placeholders are used internally to define an

intent-filter

that captures the authentication callback URL. Then Sync the Gradle files.

android {
    ...

    defaultConfig {
        ...

        manifestPlaceholders = [auth0Domain: "@string/com_auth0_domain", auth0Scheme: "demo"]
    }

    ...
}

Furthermore, let's add internet permission in the

AndroidManifest.xml

file.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.backgroundprocessing">

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

    <application
        ...
    </application>

</manifest>

Next, let's create the Login Activity that we mentioned earlier. In the same package that

MainActivity.java

is in, right-click and select New > Activity > Empty Activity from the menu.

On the window that pops up, name the Activity

LoginActivity

, check Generate a Layout File and check Launcher Activity.

Generate login activity

This will create the activity class as well as layout file and register the activity in the

AndroidManifest.xml

file.

If we look at the

AndroidManifest.xml

file, we will see the appropriate

intent-filter

tags added to

LoginActivity

indicating it's a launcher activity, but the tags on

MainActivity

won't have been removed. Remove

intent-filter

from

MainActivity

. Below is the manifest file after the changes.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.backgroundprocessing">

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/Theme.BackgroundProcessing">
        <activity android:name=".LoginActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity android:name=".MainActivity"/>
    </application>

</manifest>

Then, modify

activity_main.xml

as shown:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World"
        android:layout_marginTop="100dp"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button
        android:id="@+id/logoutButton"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Logout"
        app:layout_constraintTop_toBottomOf="@+id/textView"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

We add a TextView to the view that will display the logged in user's email and a Logout button.

Modify

activity_login.xml

as shown:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".LoginActivity">

    <Button
        android:id="@+id/loginButton"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Login"
        android:visibility="invisible"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <ProgressBar
        android:id="@+id/progressBar"
        style="?android:attr/progressBarStyle"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

We add a Login button and a progress bar that we'll use to show some feedback to the user.

Then, add the following class variables to the

LoginActivity

class and modify its

onCreate()

method as shown below.

public class LoginActivity extends AppCompatActivity {

    private Auth0 account;
    private CredentialsManager credentialsManager;
    private Button button;
    private ProgressBar progressBar;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_login);

        account = new Auth0(this);

        progressBar = findViewById(R.id.progressBar);
        button = findViewById(R.id.loginButton);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                login();
            }
        });
    }
}

We instantiate an

Auth0

object with our credentials. The

Auth0(this)

call takes the string resources defined for

com_auth0_client_id

and

com_auth0_domain

and uses their values to create an

Auth0

instance that will be used to communicate to Auth0.

We grab a reference to the views we added to the layout file and set an on click listener on the Login button. Add the following methods to the class which include the

login()

method called when the button is clicked.

private void login() {
    WebAuthProvider
            .login(account)
            .withScheme(getString(R.string.com_auth0_scheme))
            .start(this, new Callback<Credentials, AuthenticationException>() {
                @Override
                public void onSuccess(Credentials credentials) {
                    showToastText("Log In - Success");
                    credentialsManager.saveCredentials(credentials);
                    startActivity(new Intent(LoginActivity.this, MainActivity.class));
                    finish();
                }

                @Override
                public void onFailure(AuthenticationException e) {
                    showToastText("Log In - Failure");
                    e.printStackTrace();
                }
            });
}

private void showToastText(final String text) {
    Toast.makeText(LoginActivity.this, text, Toast.LENGTH_SHORT).show();
}

WebAuthProvider

is used for Auth0 authentication. It uses an external browser to provide an authentication view to the user. We pass in our

Auth0

instance and the custom scheme that we used for our callback URLs. We also pass in a callback that is called with the result of the authentication attempt. On success, we redirect the user to the

MainActivity

and call the

finish()

method which closes the current activity. After the user logs in and is taken to the

MainActivity

, we don't want them to be able to go back to the

LoginActivity

on pressing back.

Next, add the following two functions to the

LoginActivity

class:

@Override
protected void onResume() {
    super.onResume();

    AuthenticationAPIClient authAPIClient = new AuthenticationAPIClient(account);
    SharedPreferencesStorage sharedPrefStorage = new SharedPreferencesStorage(this);
    credentialsManager = new CredentialsManager(authAPIClient, sharedPrefStorage);

    credentialsManager.getCredentials(new Callback<Credentials, CredentialsManagerException>() {
        @Override
        public void onSuccess(Credentials credentials) {
            authAPIClient.userInfo(credentials.getAccessToken())
                    .start(new Callback<UserProfile, AuthenticationException>() {
                        @Override
                        public void onSuccess(UserProfile userProfile) {
                            showToastText("Automatic Login Success");
                            startActivity(new Intent(LoginActivity.this, MainActivity.class));
                            finish();
                        }

                        @Override
                        public void onFailure(AuthenticationException e) {
                            showToastText("Session Expired, please Log In");
                            credentialsManager.clearCredentials();
                            showLoginButton();
                        }
                    });
        }

        @Override
        public void onFailure(CredentialsManagerException e) {
            e.printStackTrace();
            showLoginButton();

        }
    });
}

private void showLoginButton() {
    progressBar.setVisibility(ProgressBar.GONE);
    button.setVisibility(Button.VISIBLE);
}

In the

onResume()

method, we check for any previously saved authentication credentials. The credentials are saved to the device's Shared Preferences. If there are no stored credentials then the user is definitely not currently authenticated and we show the Login button and make the progress bar invisible.

If there are previously stored credentials, this isn't a definite indicator that the user is still authenticated. Their session could be expired, they could have logged out of the app in some other way (e.g. a scenario where you select to be logged out of all apps with your account), etc.

Before taking them to the

MainActivity

, we use the stored credentials and call Auth0 to ensure that the user is still logged in. If everything goes well, we redirect to

MainActivity

, otherwise, we display the Login button so that the user can log in.

Finally, in

MainActivity.java

make the following changes:

public class MainActivity extends AppCompatActivity {

    private Auth0 account;
    private CredentialsManager credentialsManager;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        account = new Auth0(this);

        TextView textView = findViewById(R.id.textView);
        Button button = findViewById(R.id.logoutButton);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                logout();
            }
        });

        AuthenticationAPIClient authAPIClient = new AuthenticationAPIClient(account);
        SharedPreferencesStorage sharedPrefStorage = new SharedPreferencesStorage(this);
        credentialsManager = new CredentialsManager(authAPIClient, sharedPrefStorage);

        credentialsManager.getCredentials(new Callback<Credentials, CredentialsManagerException>() {
            @Override
            public void onSuccess(Credentials credentials) {
                authAPIClient.userInfo(credentials.getAccessToken())
                        .start(new Callback<UserProfile, AuthenticationException>() {
                            @Override
                            public void onSuccess(UserProfile userProfile) {
                                textView.setText(userProfile.getEmail());
                            }

                            @Override
                            public void onFailure(AuthenticationException e) {
                                e.printStackTrace();
                            }
                        });
            }

            @Override
            public void onFailure(CredentialsManagerException e) {
                e.printStackTrace();
            }
        });
    }

    private void logout() {
        WebAuthProvider
                .logout(account)
                .withScheme(getString(R.string.com_auth0_scheme))
                .start(this, new Callback<Void, AuthenticationException>() {
                    @Override
                    public void onSuccess(Void aVoid) {
                        credentialsManager.clearCredentials();
                        startActivity(new Intent(MainActivity.this, LoginActivity.class));
                        finish();
                    }

                    @Override
                    public void onFailure(AuthenticationException e) {
                        e.printStackTrace();
                    }
                });
    }
}

In the

onCreate()

method, we again create an instance of

Auth0

that is needed to communicate with the server. We then grab references to our views and add an on click listener to the Logout button that will call the

logout()

method.

We then get saved credentials and use them to get the user's information which is held in the

UserProfile

object. We call

getEmail()

on that object to get the user's email and display it in the TextView.

In the

logout()

method, we call Auth0 to log the user out and clear saved credentials from the device. We then redirect to the Login screen and call the

finish()

method ensuring that the user won't be able to navigate back to the

MainActivity

by tapping Back.

With that, we have an app that authenticates the user and uses saved session data to automatically authenticate the user, saving them the trouble of entering their information every time they launch the app.

Below is the running app.

Conclusion

Android offers several ways to perform background tasks and the solution you should use usually depends on your particular needs. In this article, we looked at the recommended solutions for different tasks. Hopefully, that helps guide you into knowing what is optimal for your app. To learn more, check out the Android docs, they are the best place to go for information. We also saw how to integrate Auth0 into an existing Android application and saw how to persist user session data thus saving the user from having to enter their login details every time they launch the app. If you have any questions, leave them down in the comments and we'll get back to you.

Background Processing in Android

Prerequisites

Introduction

Threading

WorkManager

Running a Task with the WorkManager

Setting Constraints

AlarmManager

Securing an Android Application with Auth0

Add Auth0 to an Android App

Conclusion

Android Tutorial: Building and Securing Your First App (Part 1)

Android Tutorial: Building and Securing Your First App (Part 2)
