Secure Google Cloud Endpoints with Auth0

Google Cloud Endpoints (GCE) is an API management system providing features to help you create, maintain, and secure your APIs. GCE uses OpenAPI to define your API's endpoints, input and output, errors, and security description.

For more information on the OpenAPI spec, see the OpenAPI Specification repository on GitHub.

This tutorial will cover how to secure Google Cloud Endpoints with Auth0.

Prerequisites

Before you begin you'll need a deployed GCE API. If you haven't already created an API, complete the Cloud Endpoints Quickstart located in Google documentation.

The quickstart will walk you through creating a simple GCE API with a single endpoint, /airportName, that returns the name of an airport from its three-letter IATA code.


curl --request GET \
  --url 'https://your_gce_project.appspot.com/airportName?iataCode=SFO'
var client = new RestClient("https://your_gce_project.appspot.com/airportName?iataCode=SFO");
var request = new RestRequest(Method.GET);
IRestResponse response = client.Execute(request);
package main

import (
	"fmt"
	"net/http"
	"io/ioutil"
)

func main() {

	url := "https://your_gce_project.appspot.com/airportName?iataCode=SFO"

	req, _ := http.NewRequest("GET", url, nil)

	res, _ := http.DefaultClient.Do(req)

	defer res.Body.Close()
	body, _ := ioutil.ReadAll(res.Body)

	fmt.Println(res)
	fmt.Println(string(body))

}
HttpResponse<String> response = Unirest.get("https://your_gce_project.appspot.com/airportName?iataCode=SFO")
  .asString();
var axios = require("axios").default;

var options = {
  method: 'GET',
  url: 'https://your_gce_project.appspot.com/airportName',
  params: {iataCode: 'SFO'}
};

axios.request(options).then(function (response) {
  console.log(response.data);
}).catch(function (error) {
  console.error(error);
});
#import <Foundation/Foundation.h>

NSMutableURLRequest *request = [NSMutableURLRequest requestWithURL:[NSURL URLWithString:@"https://your_gce_project.appspot.com/airportName?iataCode=SFO"]
                                                       cachePolicy:NSURLRequestUseProtocolCachePolicy
                                                   timeoutInterval:10.0];
[request setHTTPMethod:@"GET"];

NSURLSession *session = [NSURLSession sharedSession];
NSURLSessionDataTask *dataTask = [session dataTaskWithRequest:request
                                            completionHandler:^(NSData *data, NSURLResponse *response, NSError *error) {
                                                if (error) {
                                                    NSLog(@"%@", error);
                                                } else {
                                                    NSHTTPURLResponse *httpResponse = (NSHTTPURLResponse *) response;
                                                    NSLog(@"%@", httpResponse);
                                                }
                                            }];
[dataTask resume];
$curl = curl_init();

curl_setopt_array($curl, [
  CURLOPT_URL => "https://your_gce_project.appspot.com/airportName?iataCode=SFO",
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => "",
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 30,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => "GET",
]);

$response = curl_exec($curl);
$err = curl_error($curl);

curl_close($curl);

if ($err) {
  echo "cURL Error #:" . $err;
} else {
  echo $response;
}
import http.client

conn = http.client.HTTPSConnection("your_gce_project.appspot.com")

conn.request("GET", "/airportName?iataCode=SFO")

res = conn.getresponse()
data = res.read()

print(data.decode("utf-8"))
require 'uri'
require 'net/http'
require 'openssl'

url = URI("https://your_gce_project.appspot.com/airportName?iataCode=SFO")

http = Net::HTTP.new(url.host, url.port)
http.use_ssl = true
http.verify_mode = OpenSSL::SSL::VERIFY_NONE

request = Net::HTTP::Get.new(url)

response = http.request(request)
puts response.read_body
import Foundation

let request = NSMutableURLRequest(url: NSURL(string: "https://your_gce_project.appspot.com/airportName?iataCode=SFO")! as URL,
                                        cachePolicy: .useProtocolCachePolicy,
                                    timeoutInterval: 10.0)
request.httpMethod = "GET"

let session = URLSession.shared
let dataTask = session.dataTask(with: request as URLRequest, completionHandler: { (data, response, error) -> Void in
  if (error != nil) {
    print(error)
  } else {
    let httpResponse = response as? HTTPURLResponse
    print(httpResponse)
  }
})

dataTask.resume()

Define the API in Auth0

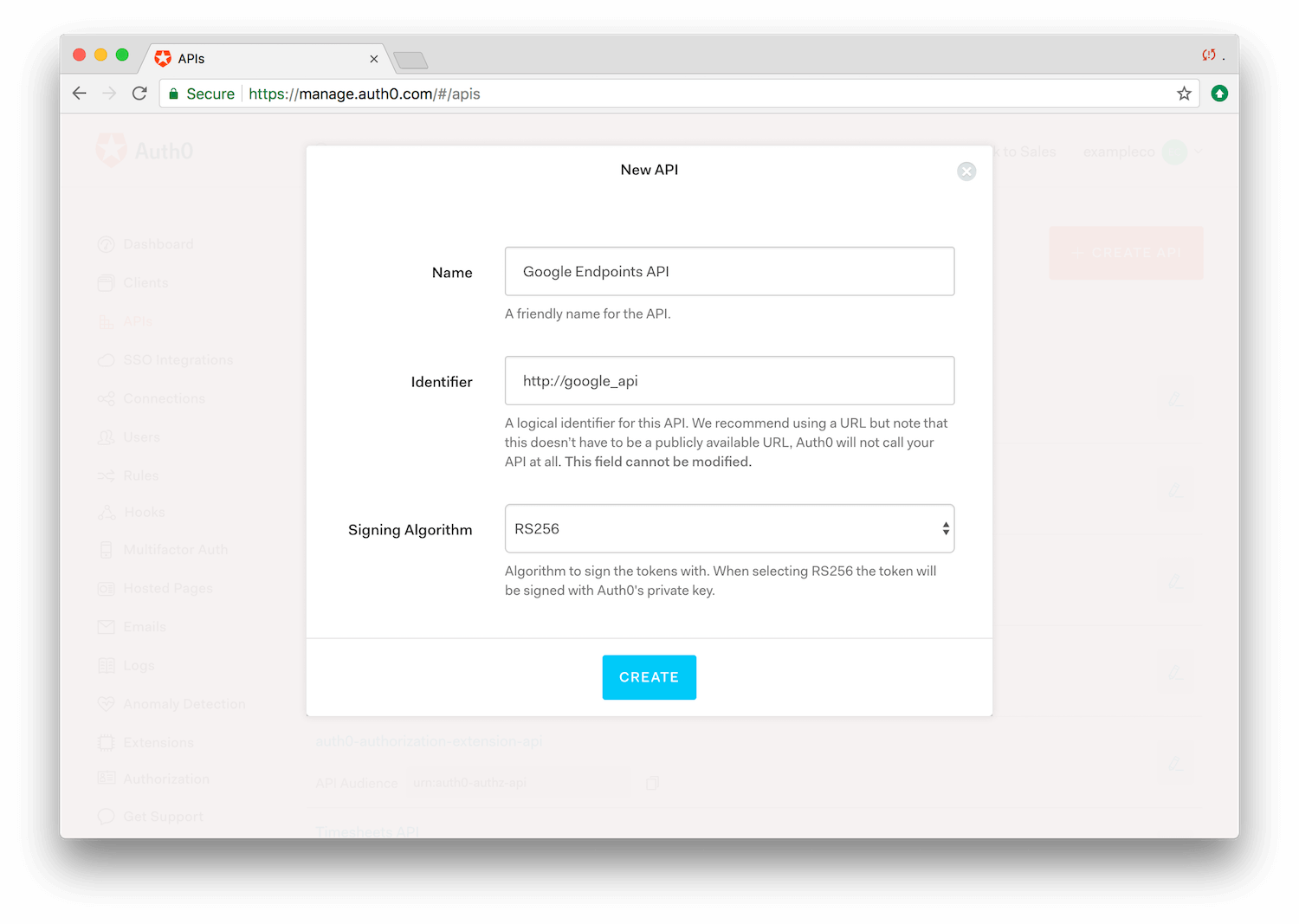

Go to Auth0 Dashboard > Applications > APIs, and create a new API.

Dashboard - Create APIs - Integrations -Google Endpoints

Make note of the API Audience identifier (http://google_api in the screenshot above) to use in the following step.

Update the API Configuration

Next, we'll update the OpenAPI configuration file for the GCE API. For the sample API created during the quickstart this file is openapi.yaml.

Add Security Definitions

Open the configuration file and add a new securityDefinitions section. In this section, add a new definition (auth0_jwt) with the following fields:

Field Description
authorizationUrl The authorization URL, should be set to "https://YOUR_DOMAIN/authorize"
flow The flow used by the OAuth2 security scheme. Valid values are "implicit", "password", "application" or "accessCode".
type The type of the security scheme. Valid values are "basic", "apiKey" or "oauth2"
x-google-issuer The issuer of a credential, should be set to "https://YOUR_DOMAIN/"
x-google-jwks_uri The URI of the public key set to validate the JSON Web Token (JWT) signature. Set this to "https://YOUR_DOMAIN/.well-known/jwks.json"
x-google-audiences The API's identifier, make sure this value matches what you defined on the Auth0 dashboard for the API.

to configure this snippet with your account

securityDefinitions:
  auth0_jwt:
    authorizationUrl: "https://YOUR_DOMAIN/authorize"
    flow: "implicit"
    type: "oauth2"
    x-google-issuer: "https://YOUR_DOMAIN/"
    x-google-jwks_uri: "https://YOUR_DOMAIN/.well-known/jwks.json"
    x-google-audiences: "{YOUR_API_IDENTIFIER}"

Update the Endpoint

Now, update the endpoint by adding a security field with the securityDefinition we created in the previous step.

paths:
  "/airportName":
    get:
      description: "Get the airport name for a given IATA code."
      operationId: "airportName"
      parameters:
        -
          name: iataCode
          in: query
          required: true
          type: string
      responses:
        200:
          description: "Success."
          schema:
            type: string
        400:
          description: "The IATA code is invalid or missing."
      security:
       - auth0_jwt: []

In the above example, the security field tells the GCE proxy that our /airportName path expects to be secured with the auth0-jwt definition.

After updating the OpenAPI configuration, it should look something like this:

to configure this snippet with your account

---
swagger: "2.0"
info:
  title: "Airport Codes"
  description: "Get the name of an airport from its three-letter IATA code."
  version: "1.0.0"
host: "YOUR_GCE_PROJECT.appspot.com"
schemes:
  - "https"
paths:
  "/airportName":
    get:
      description: "Get the airport name for a given IATA code."
      operationId: "airportName"
      parameters:
        -
          name: iataCode
          in: query
          required: true
          type: string
      responses:
        200:
          description: "Success."
          schema:
            type: string
        400:
          description: "The IATA code is invalid or missing."
      security:
       - auth0_jwt: []
securityDefinitions:
  auth0_jwt:
    authorizationUrl: "https://YOUR_DOMAIN/authorize"
    flow: "implicit"
    type: "oauth2"
    x-google-issuer: "https://YOUR_DOMAIN/"
    x-google-jwks_uri: "https://YOUR_DOMAIN/.well-known/jwks.json"
    x-google-audiences: "{YOUR_API_IDENTIFIER}"

Redeploy the API

Next, redeploy your GCE API to apply the configuration changes. If you followed along with the Cloud Endpoints Quickstart you can redeploy by entering the following in Google's Cloud Shell:

cd endpoints-quickstart/scripts
./deploy_api.sh

Test the API

Once you've redeployed, call the API again with no security.


curl --request GET \
  --url 'https://your_gce_project.appspot.com/airportName?iataCode=SFO'
var client = new RestClient("https://your_gce_project.appspot.com/airportName?iataCode=SFO");
var request = new RestRequest(Method.GET);
IRestResponse response = client.Execute(request);
package main

import (
	"fmt"
	"net/http"
	"io/ioutil"
)

func main() {

	url := "https://your_gce_project.appspot.com/airportName?iataCode=SFO"

	req, _ := http.NewRequest("GET", url, nil)

	res, _ := http.DefaultClient.Do(req)

	defer res.Body.Close()
	body, _ := ioutil.ReadAll(res.Body)

	fmt.Println(res)
	fmt.Println(string(body))

}
HttpResponse<String> response = Unirest.get("https://your_gce_project.appspot.com/airportName?iataCode=SFO")
  .asString();
var axios = require("axios").default;

var options = {
  method: 'GET',
  url: 'https://your_gce_project.appspot.com/airportName',
  params: {iataCode: 'SFO'}
};

axios.request(options).then(function (response) {
  console.log(response.data);
}).catch(function (error) {
  console.error(error);
});
#import <Foundation/Foundation.h>

NSMutableURLRequest *request = [NSMutableURLRequest requestWithURL:[NSURL URLWithString:@"https://your_gce_project.appspot.com/airportName?iataCode=SFO"]
                                                       cachePolicy:NSURLRequestUseProtocolCachePolicy
                                                   timeoutInterval:10.0];
[request setHTTPMethod:@"GET"];

NSURLSession *session = [NSURLSession sharedSession];
NSURLSessionDataTask *dataTask = [session dataTaskWithRequest:request
                                            completionHandler:^(NSData *data, NSURLResponse *response, NSError *error) {
                                                if (error) {
                                                    NSLog(@"%@", error);
                                                } else {
                                                    NSHTTPURLResponse *httpResponse = (NSHTTPURLResponse *) response;
                                                    NSLog(@"%@", httpResponse);
                                                }
                                            }];
[dataTask resume];
$curl = curl_init();

curl_setopt_array($curl, [
  CURLOPT_URL => "https://your_gce_project.appspot.com/airportName?iataCode=SFO",
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => "",
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 30,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => "GET",
]);

$response = curl_exec($curl);
$err = curl_error($curl);

curl_close($curl);

if ($err) {
  echo "cURL Error #:" . $err;
} else {
  echo $response;
}
import http.client

conn = http.client.HTTPSConnection("your_gce_project.appspot.com")

conn.request("GET", "/airportName?iataCode=SFO")

res = conn.getresponse()
data = res.read()

print(data.decode("utf-8"))
require 'uri'
require 'net/http'
require 'openssl'

url = URI("https://your_gce_project.appspot.com/airportName?iataCode=SFO")

http = Net::HTTP.new(url.host, url.port)
http.use_ssl = true
http.verify_mode = OpenSSL::SSL::VERIFY_NONE

request = Net::HTTP::Get.new(url)

response = http.request(request)
puts response.read_body
import Foundation

let request = NSMutableURLRequest(url: NSURL(string: "https://your_gce_project.appspot.com/airportName?iataCode=SFO")! as URL,
                                        cachePolicy: .useProtocolCachePolicy,
                                    timeoutInterval: 10.0)
request.httpMethod = "GET"

let session = URLSession.shared
let dataTask = session.dataTask(with: request as URLRequest, completionHandler: { (data, response, error) -> Void in
  if (error != nil) {
    print(error)
  } else {
    let httpResponse = response as? HTTPURLResponse
    print(httpResponse)
  }
})

dataTask.resume()

You'll get the following response:

{
 "code": 16,
 "message": "JWT validation failed: Missing or invalid credentials",
 "details": [
  {
   "@type": "type.googleapis.com/google.rpc.DebugInfo",
   "stackEntries": [],
   "detail": "auth"
  }
 ]
}

Which is exactly what we want!

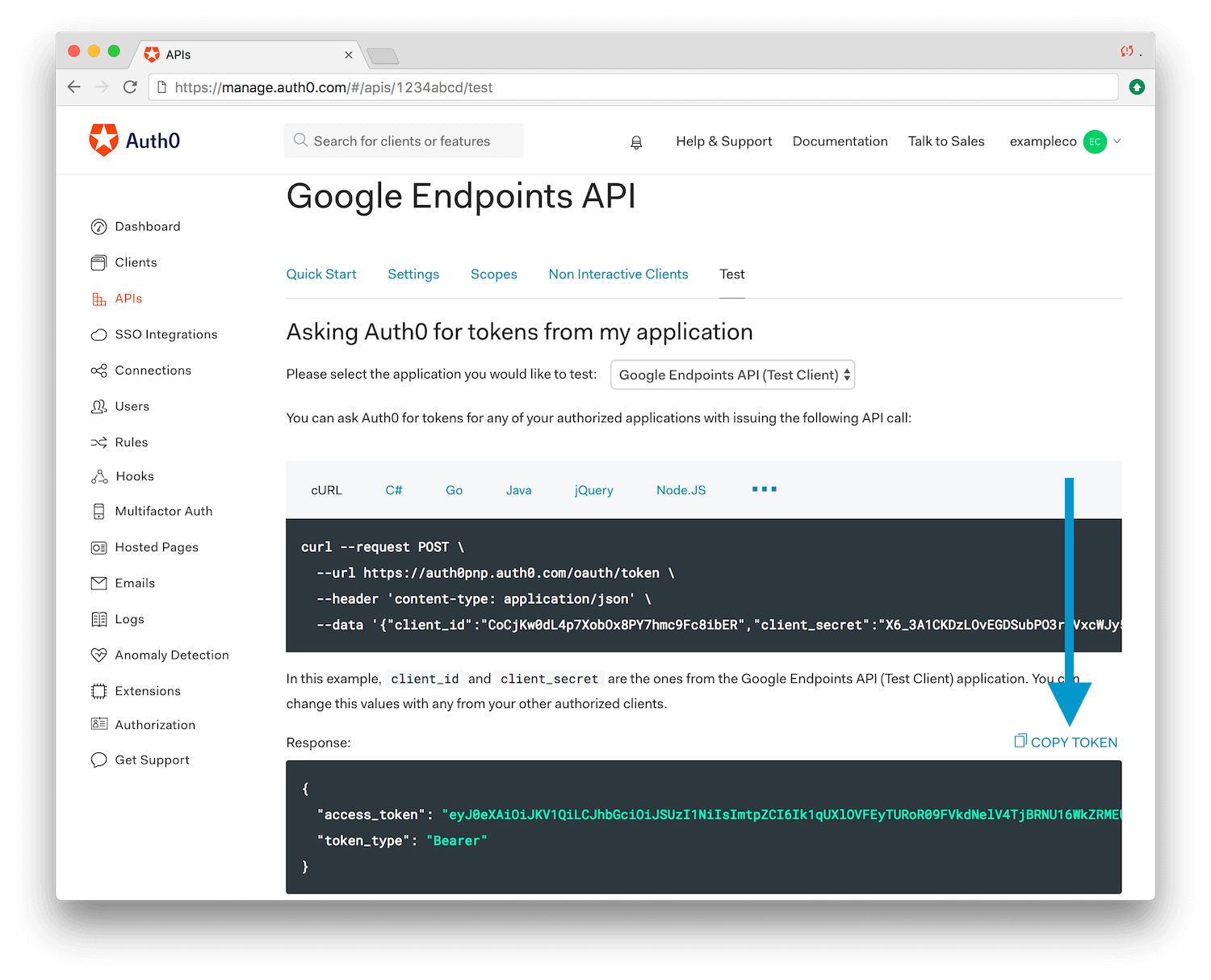

Now go to the Test page of your Google Endpoints API definition on the Auth0 Dashboard, and copy the Access Token under the Response:

Dashboard - API - Integrations - Google Endpoints - Copy Token

Perform a GET request to your API with an Authorization Header of Bearer {ACCESS_TOKEN} to obtain authorized access:


curl --request GET \
  --url 'https://your_gce_project.appspot.com/airportName?iataCode=SFO' \
  --header 'authorization: Bearer {ACCESS_TOKEN}'
var client = new RestClient("https://your_gce_project.appspot.com/airportName?iataCode=SFO");
var request = new RestRequest(Method.GET);
request.AddHeader("authorization", "Bearer {ACCESS_TOKEN}");
IRestResponse response = client.Execute(request);
package main

import (
	"fmt"
	"net/http"
	"io/ioutil"
)

func main() {

	url := "https://your_gce_project.appspot.com/airportName?iataCode=SFO"

	req, _ := http.NewRequest("GET", url, nil)

	req.Header.Add("authorization", "Bearer {ACCESS_TOKEN}")

	res, _ := http.DefaultClient.Do(req)

	defer res.Body.Close()
	body, _ := ioutil.ReadAll(res.Body)

	fmt.Println(res)
	fmt.Println(string(body))

}
HttpResponse<String> response = Unirest.get("https://your_gce_project.appspot.com/airportName?iataCode=SFO")
  .header("authorization", "Bearer {ACCESS_TOKEN}")
  .asString();
var axios = require("axios").default;

var options = {
  method: 'GET',
  url: 'https://your_gce_project.appspot.com/airportName',
  params: {iataCode: 'SFO'},
  headers: {authorization: 'Bearer {ACCESS_TOKEN}'}
};

axios.request(options).then(function (response) {
  console.log(response.data);
}).catch(function (error) {
  console.error(error);
});
#import <Foundation/Foundation.h>

NSDictionary *headers = @{ @"authorization": @"Bearer {ACCESS_TOKEN}" };

NSMutableURLRequest *request = [NSMutableURLRequest requestWithURL:[NSURL URLWithString:@"https://your_gce_project.appspot.com/airportName?iataCode=SFO"]
                                                       cachePolicy:NSURLRequestUseProtocolCachePolicy
                                                   timeoutInterval:10.0];
[request setHTTPMethod:@"GET"];
[request setAllHTTPHeaderFields:headers];

NSURLSession *session = [NSURLSession sharedSession];
NSURLSessionDataTask *dataTask = [session dataTaskWithRequest:request
                                            completionHandler:^(NSData *data, NSURLResponse *response, NSError *error) {
                                                if (error) {
                                                    NSLog(@"%@", error);
                                                } else {
                                                    NSHTTPURLResponse *httpResponse = (NSHTTPURLResponse *) response;
                                                    NSLog(@"%@", httpResponse);
                                                }
                                            }];
[dataTask resume];
$curl = curl_init();

curl_setopt_array($curl, [
  CURLOPT_URL => "https://your_gce_project.appspot.com/airportName?iataCode=SFO",
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => "",
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 30,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => "GET",
  CURLOPT_HTTPHEADER => [
    "authorization: Bearer {ACCESS_TOKEN}"
  ],
]);

$response = curl_exec($curl);
$err = curl_error($curl);

curl_close($curl);

if ($err) {
  echo "cURL Error #:" . $err;
} else {
  echo $response;
}
import http.client

conn = http.client.HTTPSConnection("your_gce_project.appspot.com")

headers = { 'authorization': "Bearer {ACCESS_TOKEN}" }

conn.request("GET", "/airportName?iataCode=SFO", headers=headers)

res = conn.getresponse()
data = res.read()

print(data.decode("utf-8"))
require 'uri'
require 'net/http'
require 'openssl'

url = URI("https://your_gce_project.appspot.com/airportName?iataCode=SFO")

http = Net::HTTP.new(url.host, url.port)
http.use_ssl = true
http.verify_mode = OpenSSL::SSL::VERIFY_NONE

request = Net::HTTP::Get.new(url)
request["authorization"] = 'Bearer {ACCESS_TOKEN}'

response = http.request(request)
puts response.read_body
import Foundation

let headers = ["authorization": "Bearer {ACCESS_TOKEN}"]

let request = NSMutableURLRequest(url: NSURL(string: "https://your_gce_project.appspot.com/airportName?iataCode=SFO")! as URL,
                                        cachePolicy: .useProtocolCachePolicy,
                                    timeoutInterval: 10.0)
request.httpMethod = "GET"
request.allHTTPHeaderFields = headers

let session = URLSession.shared
let dataTask = session.dataTask(with: request as URLRequest, completionHandler: { (data, response, error) -> Void in
  if (error != nil) {
    print(error)
  } else {
    let httpResponse = response as? HTTPURLResponse
    print(httpResponse)
  }
})

dataTask.resume()

And that's it!
