Build a User Signup Counter with Arduino, Part 2

Overview

This is part two of a two-part tutorial that will show you how to build a user signup counter using Arduino. In part one, you built an Arduino project that displays a number on two 7-segment displays.

Now you will learn how to integrate your project with your Auth0 tenant to display the user signup count. First, you'll build and deploy a user count API, and then you will set up a rule that increments the user count. You will then call the API in an Arduino sketch. Finally, you will add authentication to your API and update the rule and Arduino sketch to call the API securely.

Build user count API

To store the user count, you’ll build a simple API with two endpoints to increment and read the user count. You’ll then set up an Auth0 rule that will increment the user count each time a new user logs in.

You can find a finished API example here: User Count API

Note: For simplicity, since there is quite a bit to cover in the Arduino sketch sections, this tutorial uses

node-persist

to keep track of the user count. However, to persist the count through container restarts once deployed to Heroku, you will need to set up a database to store the count, such as Heroku Postgres.

To build the API, first create a new directory called

user-count-api

mkdir user-count-api && cd user-count-api

Initiate npm and press Enter a few times to configure the

package.json

for your project:

npm init

Install the

express

and

node-persist

npm packages:

npm install express node-persist

Create a new file called

server.js

and open it up in an editor. If you’re on macOS or Linux, use this command:

touch server.js

If you’re on Windows, use this command:

bash
call > server.js

Use the following code to set up the GET and POST endpoints:

const express = require('express');
const storage = require('node-persist');

const app = express();
const port = process.env.PORT || 8000;

app.use((error, req, res, next) => {
  return res.status(500).json({ error: error.toString() });
});

app.get('/', async (req, res) => {
  try {
    await storage.init();
    const userCount = await storage.getItem('userCount');
    res.send({userCount: userCount});
  } catch (error) {
    next(error);
  }
});

app.post('/', async (req, res) => {
  try {
    await storage.init();
    let oldUserCount = await storage.getItem('userCount') || 0;
    oldUserCount++;
    const newUserCount = await storage.setItem('userCount', oldUserCount);
    const userCount = newUserCount.content.value;
    res.send({userCount});
  } catch (error) {
    next(error);
  }
});

app.listen(port, () => console.log(`Listening on port ${port}`));

Start the API:

npm start

Test out the API in a new console window:

curl -X POST http://localhost:8000/

Each time you run the cURL request, the returned

userCount

increases.

If you look inside the

user-count-api

directory, you'll find a new folder called

.node-persist

. The

node-persist

package keeps track of data saved by the

setItem()

method in this folder. You can alter the JSON file directly to change the user count manually. If you already have users in your Auth0 tenant, you can update the user count to be the actual count.

Deploy the user count API to Heroku

Heroku is a cloud-based Platform as a Service (PaaS) that makes it simple to deploy apps. To get started, create a free account or login.

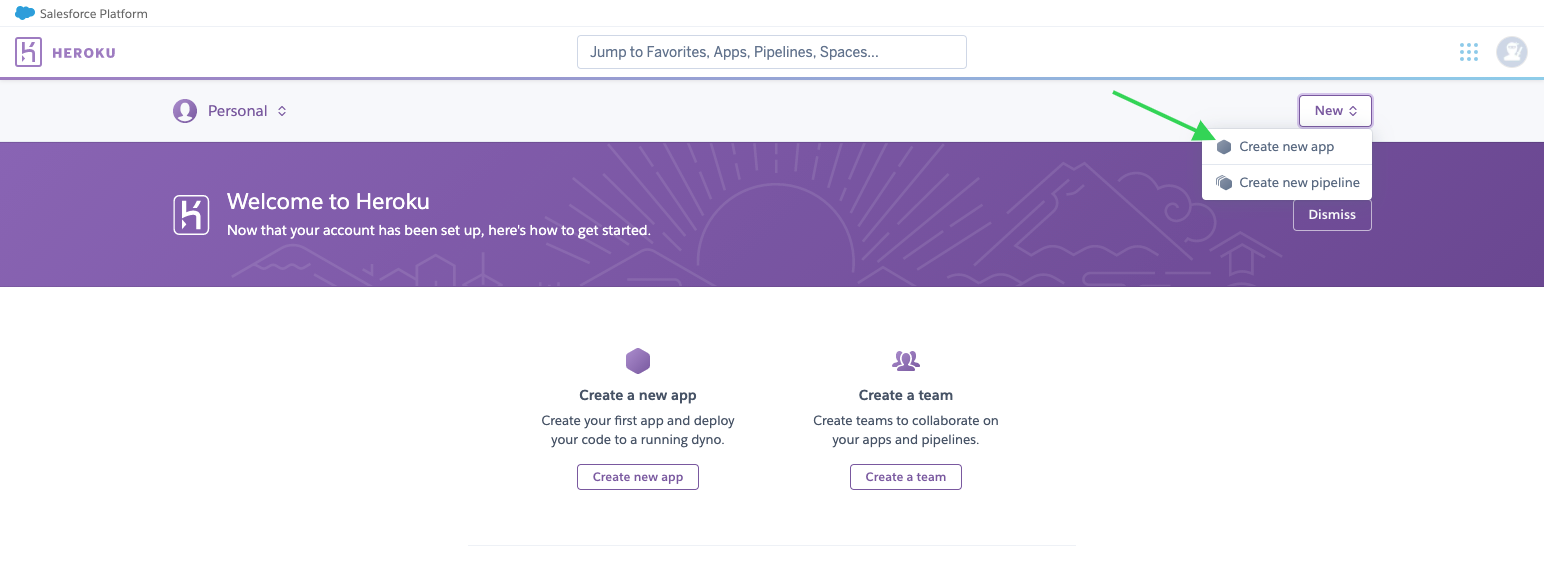

Click New and select Create new app:

Create a new Heroku app

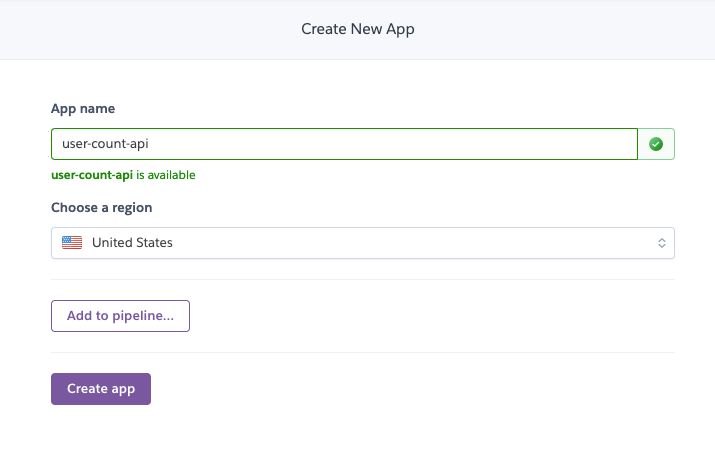

Give the API a name and click Create app:

Give the app a name

Follow the instructions under Deploy using Heroku Git.

First, download and install the Heroku CLI. Once installed, authenticate:

heroku login

From the API directory, initialize git using the command below, but be sure to replace

YOUR_API_NAME

with the name of your API:

git init
heroku git:remote -a YOUR_API_NAME

Before committing the code, create a .gitignore file to ignore node modules. If you’re on macOS or Linux, use this command:

echo 'node_modules/' > .gitignore

If you're on Windows, use this command. It's almost the same as the macOS/Linux version, except that there aren't any quotes around

node_modules/

echo node_modules/ > .gitignore

Commit and deploy the API:

git add .
git commit . -m 'Initial commit'
git branch -M main
git push heroku main

Near the bottom of the deployment logs, you can see the URL of the API. Visit the URL to see the API response.

remote: -----> Build succeeded!
remote: -----> Discovering process types
remote:        Procfile declares types     -> (none)
remote:        Default types for buildpack -> web
remote:
remote: -----> Compressing...
remote:        Done: 32.7M
remote: -----> Launching...
remote:        Released v3
remote:        https://user-count-api.herokuapp.com/ deployed to Heroku
remote:
remote: Verifying deploy... done.
To https://git.heroku.com/user-count-api.git
 * [new branch]      main -> main

Create a rule to increment the user count

The API is deployed, but now you will need to increment the user count every time a new user is created for your Auth0 tenant. To accomplish this, you will create a rule.

Rules are javascript functions that run after a user logs into your application. Rules can determine if it is the first time a user logs in via the context object. You can take advantage of this fact to only increment the user count the first time a user logs in.

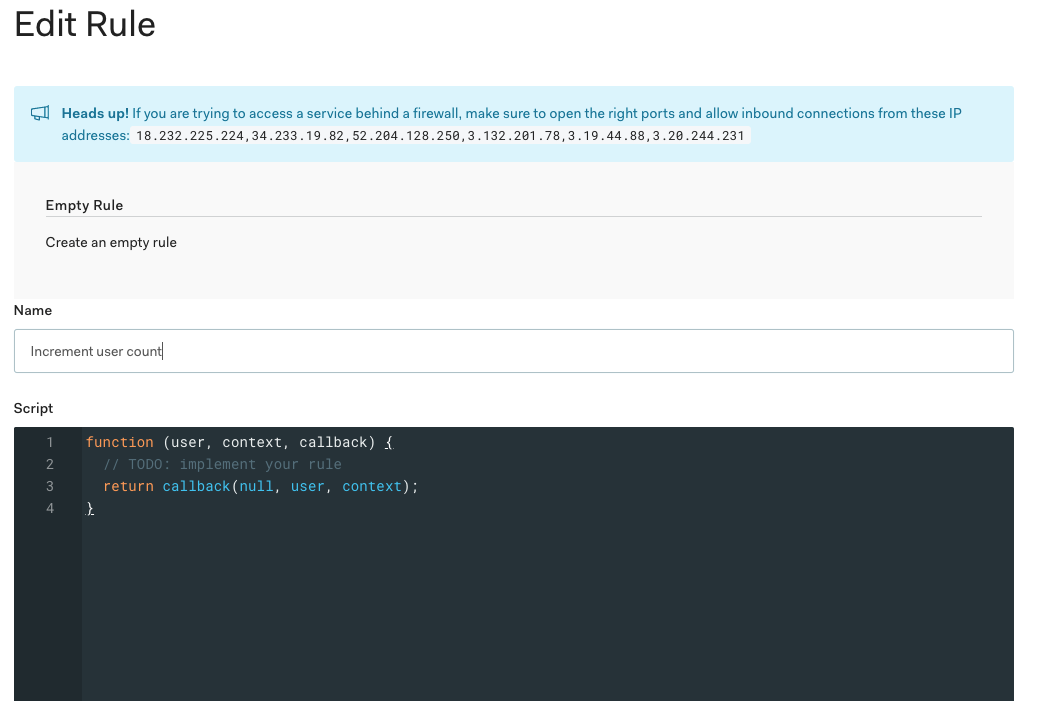

From your Auth0 dashboard, navigate to Auth Pipeline > Rules and click + CREATE RULE. Select Empty rule and give the rule a name:

Create an Auth0 rule

Use the following code to send a POST request to your user count API, but be sure to replace

YOUR_HEROKU_API_URI

with your deployed API's URI:

async function (user, context, callback) {
  const axios = require('axios@0.19.2');

  const count = context.stats && context.stats.loginsCount ? context.stats.loginsCount : 0;
  console.log(count);
  if (count > 1) {
    return callback(null, user, context);
  }

  try {
    const userCountAPI = 'https://user-count-api.herokuapp.com/';
    await axios.post(userCountAPI);
    return callback(null, user, context);
  } catch (err) {
    console.error(err);
    return callback(null, user, context);
  }
}

Save and enable the rule by clicking SAVE CHANGES. Test your rule by navigating to Getting Started in your dashboard and click Try it out under Try your Login box. Sign up a new user and check your user count API to see the user count increase.

Call API with Arduino

Now that your API is deployed and you've created a rule to increment the user count, it's time to write an Arduino sketch that will allow the NodeMCU to retrieve the user count.

If you haven’t done so already, you’ll need to install the following libraries: * Adafruit LED Backpack Library * Adafruit GFX * ArduinoJson

Note: You may have already installed the Adafruit libraries when you tested the prototype in part one. If you haven’t, go to Tools > Manage Libraries… in the Arduino IDE and install each required library.

Open up the Arduino IDE and click File > New. The file will contain boiler plate code:

void setup() {
  // put your setup code here, to run once:
}

void loop() {
  // put your main code here, to run repeatedly:
}

The

setup

function executes as soon as the sketch is uploaded to a board. This is where you will initialize the Serial Monitor, the Adafruit 7-segment displays, and the Wi-Fi connection.

As you might have guessed, the

loop()

function executes over and over again. At the end of this function, you'll add a delay so that this loop does not occur too quickly.

Above the

setup()

and

loop()

functions, you will need to: 1. Import required libraries into the project, and 2. Declare the variables which the

setup()

and

loop()

functions will use.

Click File > Save and name the project

user-count-display

Import the libraries you need for connecting to Wi-Fi and parsing JSON by adding the following to the top of the sketch:

#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <ArduinoJson.h>

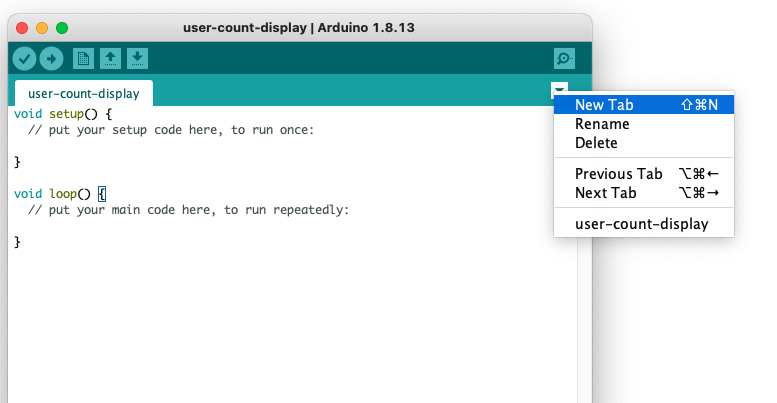

Create a new tab in your project by clicking the down arrow on the top right of the IDE window. Name it

arduino_secrets.h

Create a new tab in Arduino IDE

This is an external file that will contain sensitive information, such as your Wi-Fi network name and password. Keep this in a separate file so that if you push it to a remote repository, you can add

arduino_secrets.h

to the

.gitignore

and protect sensitive information.

In the

arduino_scecrets.h

file add the following with your network information:

#define SECRET_SSID "YOUR_NETWORK_NAME"
#define SECRET_PASS "YOUR_NETWORK_PASSWORD"

Back in the

user-count-display

tab, below the imported libraries and above the

setup()

function, import and declare the network variables:

#include "arduino_secrets.h"

char ssid[] = SECRET_SSID;
char pass[] = SECRET_PASS;

Next, add the following to the

setup()

function:

void setup() {
  Serial.begin(115200);

  WiFi.begin(ssid, pass);

  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.print("Connecting..");
  }

  Serial.print("Connected!");
}

This code allows you to:

Connect to Wi-Fi,
Initialize the Serial Monitor, and
View the connection state in the Serial Monitor.

The Serial Monitor is a part of the Arduino software. It allows you to send and receive messages with a programmable board, much like a console.

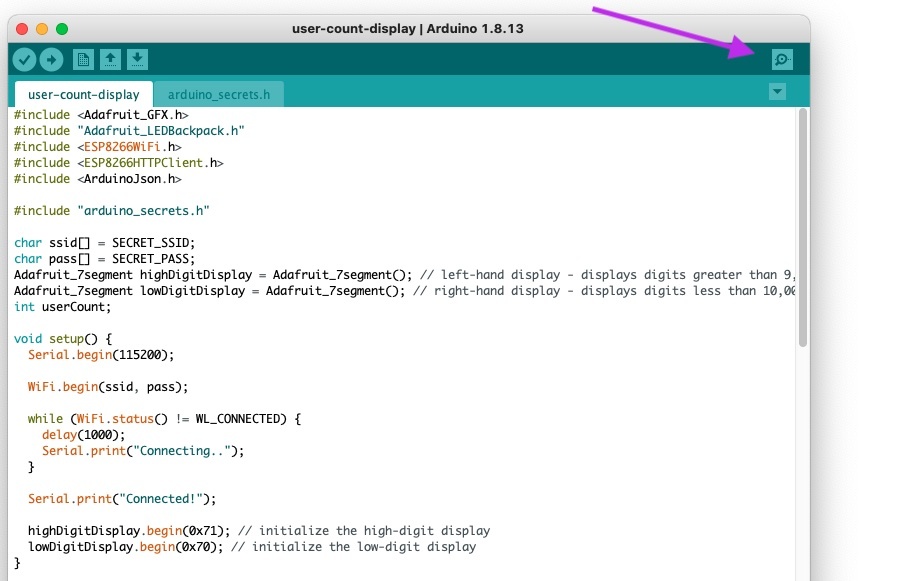

Connect the NodeMCU to your computer with the micro USB cable, then click the magnifying glass icon at the top right of the IDE window to view the Serial Monitor output:

View Arduino Serial Monitor

Ensure that the Serial Monitor is set to the right baud rate, which is the measure of serial data transmission in bits per second. In the code above, the baud rate is set to 115200 (

Serial.begin(115200);

Upload the program by clicking the right-facing arrow icon on the top left of the IDE window. You should see the connection status in the Serial Monitor:

09:46:16.490 -> Connecting..Connecting..Connecting..Connecting..Connected!

If it can’t connect, it will just keep printing

Connecting..

. If this happens, double-check your network name and password.

Once you’ve confirmed that you can connect to Wi-Fi, it's time to call the user count API. First, declare an integer variable right above the

setup()

code block:

...

char pass[] = SECRET_PASS;
int userCount; // ← Add this line to declare the variable for storing the user count

void setup() {

...

Next, add the following to the

loop()

function. Be sure to replace

YOUR_HEROKU_API_URL

with your Heroku API’s URL. Use http instead of https for now. You'll update this to use a secure connection when you add authentication later on:

void loop() {
  if (WiFi.status() == WL_CONNECTED) { // Check Wi-Fi connection status
    HTTPClient http; // Declare an object of class HTTPClient
    http.begin("http://YOUR_HEROKU_API_URL"); // Specify request destination
    int httpCode = http.GET(); // Send the request

    if (httpCode > 0) { // Check the response code
      String payload = http.getString(); // Get the request response payload
      Serial.println(payload); // Print the response payload
      DynamicJsonDocument doc(1024);
      deserializeJson(doc, payload);
      userCount = doc["userCount"];
      Serial.println(userCount);
    }

    http.end(); // Close connection
  }

  delay(30000); // Send a request every 30 seconds
}

Upload the sketch and view the Serial Monitor output:

10:14:24.224 -> Connecting..Connecting..Connecting..Connected! {"userCount":22}
10:14:29.694 -> 22

Now that the NodeMCU can connect to Wi-Fi and retrieve the user count, you can now show the user count on the 7-segment displays.

Import the Adafruit libraries at the top of the file:

#include <Adafruit_GFX.h>
#include "Adafruit_LEDBackpack.h"
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <ArduinoJson.h>

Right above

userCount

, declare the variables used to represent the 7-segment displays:

...

char pass[] = SECRET_PASS;
Adafruit_7segment highDigitDisplay = Adafruit_7segment(); // left-hand display - displays digits greater than 9,999
Adafruit_7segment lowDigitDisplay = Adafruit_7segment(); // right-hand display - displays digits less than 10,000
int userCount;

...

In the

setup()

function, initialize the displays, providing the correct I2C address for each display.

Reminder: the display with the shorted A0 solder jumper has the address

0x71

. The other display uses the default

0x70

address.

void setup() {
  Serial.begin(115200);

  WiFi.begin(ssid, pass);

  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.print("Connecting..");
  }

  Serial.print("Connected!");

  highDigitDisplay.begin(0x71); // initialize the high-digit display
  lowDigitDisplay.begin(0x70); // initialize the low-digit display
}

In the

loop()

function, show the user count on the displays:

void loop() {
  if (WiFi.status() == WL_CONNECTED) { // Check Wi-Fi connection status
    HTTPClient http; // Declare an object of class HTTPClient
    http.begin("http://YOUR_HEROKU_API_URL"); // Specify request destination
    int httpCode = http.GET(); // Send the request
    if (httpCode > 0) { // Check the returning code
      String payload = http.getString(); // Get the request response payload
      Serial.println(payload); // Print the response payload
      DynamicJsonDocument doc(1024);
      deserializeJson(doc, payload);
      userCount = doc["userCount"];
      Serial.println(userCount);
      uint16_t highDigits = userCount / 10000, // Value on left (high digits) display
               lowDigits = userCount % 10000; // Value on right (low digits) display
      highDigitDisplay.print(highDigits, DEC);
      lowDigitDisplay.print(lowDigits, DEC);

      // Place zeroes in front of the lowDigit value if userCount is greater than 10,000

      if (highDigits) {
        if (lowDigits < 1000) {
          lowDigitDisplay.writeDigitNum(0, 0);
        }
        if (lowDigits < 100) {
          lowDigitDisplay.writeDigitNum(1, 0);
        }
        if (lowDigits < 10) {
          lowDigitDisplay.writeDigitNum(3, 0);
        }
      } else {
        highDigitDisplay.clear();
      }

      highDigitDisplay.writeDisplay();
      lowDigitDisplay.writeDisplay();
    }

    http.end(); // Close connection
  }

  delay(30000); // Send a request every 30 seconds
}

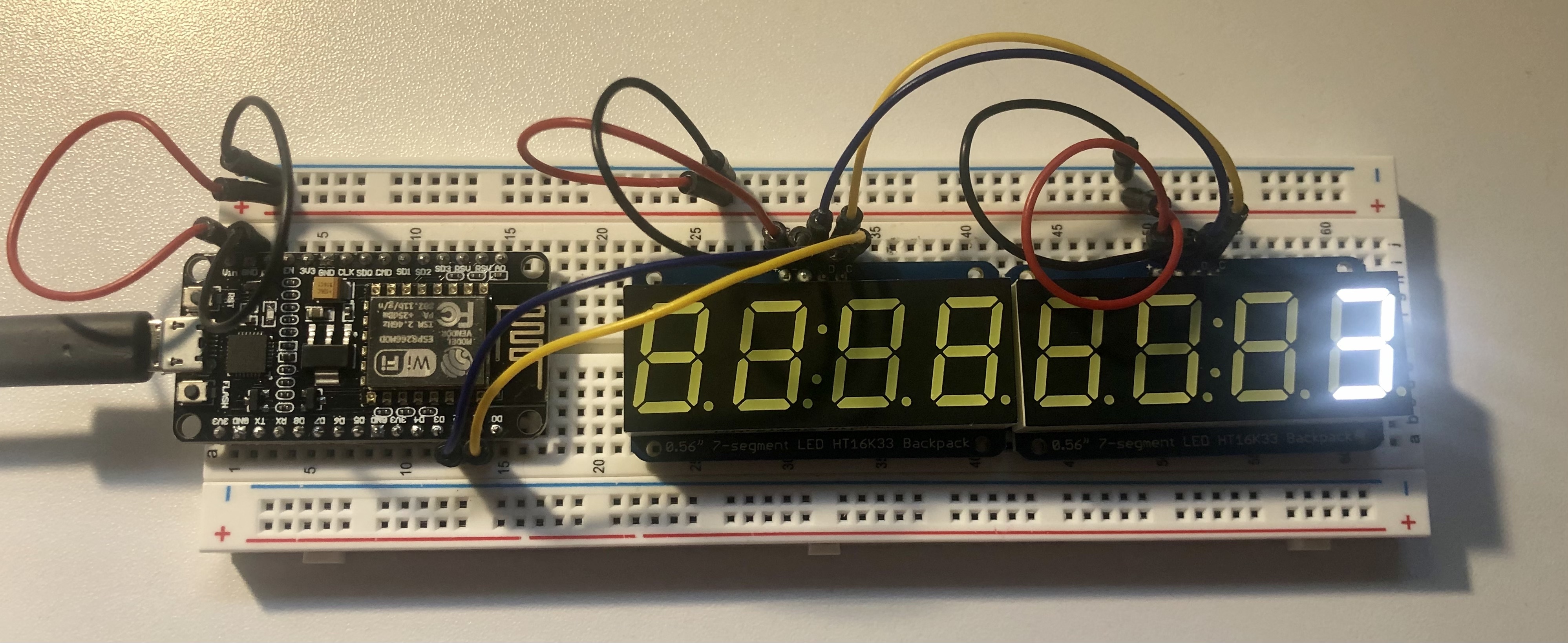

Upload the program, and you should see the user count on the displays:

User count display

Add authentication to user count API

It’s great that the user counter project is working properly, but let’s say you want to ensure that only your Auth0 rule and NodeMCU board can interact with the user count API. You can protect the API in just a few steps.

First, register the API with Auth0. Log in to the Auth0 dashboard, go to APIs and click the + CREATE API button. Give the API a name and use

https://user-count-api/

for the identifier, then click CREATE:

Click on the Settings tab, and enable the Allow Offline Access setting. This will make it possible for the NodeMCU to retrieve new access tokens for the user count API without re-authentication. Keep this page open so that you can use its information in the next step.

Enable offline access

Now that the API is registered, you can now protect the user count endpoints. Install the packages required for JWT validation:

npm install jwks-rsa express-jwt

Next, add a

.env

file. On macOS and Linux, do this with the following command:

touch .env

On Windows, use this command:

bash
call > .env

Add the API identifier (Audience) and your tenant domain to the .env file. You can find the API identifier and domain in the API settings.

AUTH0_AUDIENCE=https://user-count-api/
AUTH0_DOMAIN=YOUR_DOMAIN

Update the

server.js

code to protect each endpoint:

const express = require('express');
const storage = require('node-persist');
const jwt = require('express-jwt');
const jwksRsa = require('jwks-rsa');
require('dotenv').config();

const app = express();
const port = process.env.PORT || 8000;

app.use((error, req, res, next) => {
 return res.status(500).json({ error: error.toString() });
});

const checkJwt = jwt({
 // Dynamically provide a signing key based on the [Key ID](https://tools.ietf.org/html/rfc7515#section-4.1.4) header parameter ("kid") and the signing keys provided by the JWKS endpoint.
 secret: jwksRsa.expressJwtSecret({
   cache: true,
   rateLimit: true,
   jwksRequestsPerMinute: 5,
   jwksUri: `https://${process.env.AUTH0_DOMAIN}/.well-known/jwks.json`
 }),

 // Validate the audience and the issuer.
 audience: process.env.AUTH0_AUDIENCE,
 issuer: `https://${process.env.AUTH0_DOMAIN}/`,
 algorithms: ['RS256']
});

app.get('/', checkJwt, async (req, res) => {
 try {
   await storage.init();
   const userCount = await storage.getItem('userCount');
   res.send({userCount: userCount});
 } catch (error) {
   next(error);
 }
});

app.post('/', checkJwt, async (req, res) => {
 try {
   await storage.init();
   let oldUserCount = await storage.getItem('userCount');
   oldUserCount++;
   const newUserCount = await storage.setItem('userCount', oldUserCount);
   const userCount = newUserCount.content.value;
   res.send({userCount});
 } catch (error) {
   next(error);
 }
});

app.listen(port, () => console.log(`Listening on port ${port}`));

With the

checkJwt

middleware object added to both endpoints, the API is now secure. If you try to call the endpoint without an access token, you’ll receive a

401 Unauthorized

response. The

checkJwt

middleware validates access tokens to ensure Auth0 has issued them and that they have not been tampered with.

Next, commit and deploy the changes to Heroku:

git commit . -m 'Require Access Tokens for user count endpoints'
git push heroku main

That’s it! The API is secure.

Register client applications

...But what about the rule and the NodeMCU? How will they obtain access tokens so that they can interact with the user count API?

To authorize the rule and the NodeMCU to use the user count API, you’ll need to create the following applications in your Auth0 tenant:

A Machine-to-Machine application for the rule, and
A Native application for the NodeMCU.

You will need to implement OAuth 2.0's Client Credentials Flow for the rule and the Device Authorization Flow for the NodeMCU.

Configure machine-to-machine application for rule

You’ll set up the rule's machine-to-machine application first. select Applications, then click + CREATE APPLICATION.

Give the application a name, select Machine to Machine Applications, then click CREATE:

Create Machine-to-Machine application

Next, authorize the application to use the user count API. Click AUTHORIZE:

Authorize User Count Rule

The machine-to-machine application is now configured for the rule. However, you still need to update the rule to retrieve an access token before calling the user count API.

Open the Rules settings in a new tab. Scroll down to the bottom and add the following configurations: *

ARDUINO_APP_URL

- The Heroku URL for the API *

ARDUINO_APP_CLIENT_ID

- The Client ID of the machine-to-machine application you just created for the rule *

ARDUINO_APP_CLIENT_SECRET

- The Client Secret of the machine-to-machine application

User count rule configurations

Finally, update the rule to retrieve an access token for the API and then use it as a bearer token when incrementing the user count:

async function (user, context, callback) {
  const axios = require('axios@0.19.2');
  const count = context.stats && context.stats.loginsCount ? context.stats.loginsCount : 0;
  if (count > 1) {
    return callback(null, user, context);
  }
  const tokenOptions = {
    method: 'POST',
    url: `https://${auth0.domain}/oauth/token`,
    headers: {
      'content-type': 'application/json'
    },
    data: {
      "client_id": configuration.ARDUINO_APP_CLIENT_ID,
      "client_secret": configuration.ARDUINO_APP_CLIENT_SECRET,
      "audience":"https://user-counter-api/",
      "grant_type":"client_credentials"
    }
  };

  try {
    const tokenResponse = await axios(tokenOptions);
    const accessToken = tokenResponse.data.access_token;
    const counterAPIOptions = {
      method: 'POST',
      url: configuration.ARDUINO_APP_URL,
      headers: { Authorization: `Bearer ${accessToken}` }
    };
    await axios(counterAPIOptions);
    return callback(null, user, context);
  } catch (err) {
    console.error(err);
    return callback(null, user, context);
  }
}

The rule is now ready to increment the user count.

Configure native application for NodeMCU

Next, the NodeMCU must be able to acquire an access token to retrieve the user count from the API. You will need to update the Arduino sketch so that an end-user can authenticate with Auth0 via OAuth 2.0's Device Authorization Flow. This flow requires a native application.

Create a new application in your Auth0 tenant once again, but this time select Native:

Create native application

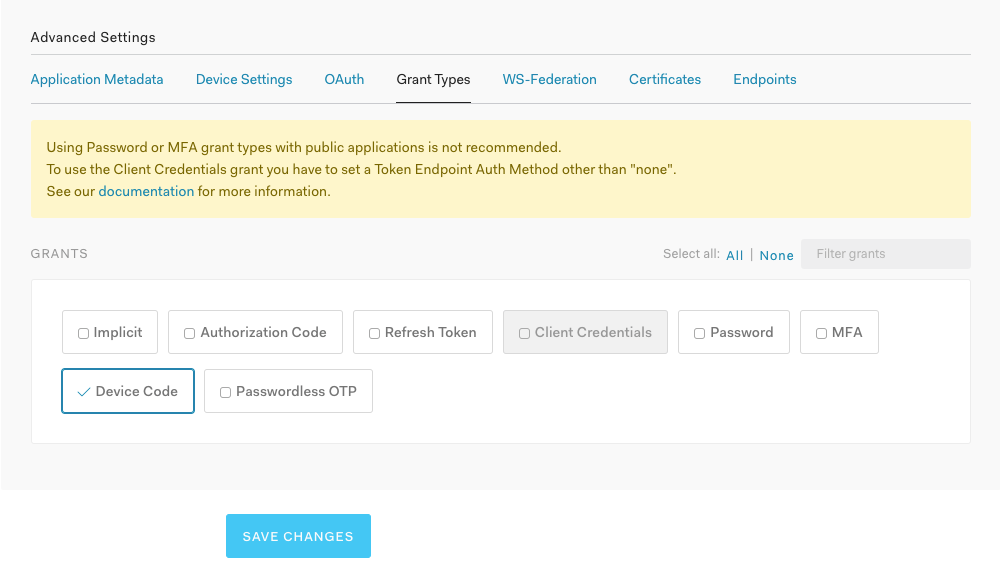

From the Settings tab, scroll to the bottom and click Show Advanced Settings. Select Grant Types and enable Device Code:

Enable Device Code grant

Be sure to save the changes before moving on by selecting SAVE CHANGES. Keep the settings page open for the next step.

Implement Device Authorization Flow

The native application is created and now the final step is updating the Arduino sketch to follow the Device Authorization Flow. You can read more about this flow in the documentation, but here is a brief breakdown: *Step 1) Get codes: The device requests a

device code

and

user code

from Auth0. *Step 2) Prompt user & poll for tokens: The device prompts the user to activate the device by navigating to a URL, authenticating with the Auth0 tenant, and submitting the

user code

. Meanwhile, the device uses the

device code

to make several requests to Auth0 for an access token and refresh token. These requests will fail until the user activates the device. *Step 3) Use the tokens: Once the user activates the device, Auth0 will return an

access token

and

refresh token

to the device. The device can now use the

access token

as a bearer token when making requests to the API. When the

access token

expires, the device can use the `refresh token to retrieve a new access token.

You can clone a completed implementation in this Github repositiory. Don't forget to create an

arduino_secrets.h

file following the provided example file (

arduino_secrets.example.h

). Alternatively, you can write the sketch by following along below.

First, open the Arduino IDE and create a new file (File > New File). Save the file and name it

user-counter-with-auth

. Create a new tab and call it

arduino_secrets.h

. The

arduino_screts.h

file will need the following variables:

#define SECRET_SSID "YOUR_WIFI_NETWORK_NAME"
#define SECRET_PASS "YOUR_WIFI_NETWORK_PASSWORD"

#define SECRET_CLIENT_ID "YOUR_AUTH0_NATIVE_APP_CLIENT_ID"
#define SECRET_CLIENT_SECRET "YOUR_AUTH0_NATIVE_APP_CLIENT_SECRET"
#define SECRET_DOMAIN "YOUR_AUTH0_TENANT_DOMAIN"
#define SECRET_AUDIENCE "YOUR_API_IDENTIFIER"
#define SECRET_API_DOMAIN "YOUR_API_DOMAIN"

#define SECRET_AUTH_FINGERPRINT "YOUR_AUTH0_TENANT_SHA1_FINGERPRINT"
#define SECRET_API_FINGERPRINT "YOUR_API_SHA1_FINGERPRINT"

```
SECRET_SSID
```
and
```
SECRET_PASS
```
are your Wi-Fi network name and password.
```
SECRET_CLIENT_ID
```
,
```
SECRET_CLIENT_SECRET
```
, and
```
SECRET_DOMAIN
```
can be found in settings tab of the the native application that you created for the NodeMCU.
```
SECRET_AUDIENCE
```
is the API identifier of the user count API.
```
SECRET_API_DOMAIN
```
is the domain of the API that you deployed to Heroku.

The ESP8266 microchip requires a TLS fingerprint to make a secure HTTP request. You will need to get the fingerprint for your Auth0 domain and the API so that the ESP8266 Wi-Fi library is able to verify the fingerprint and make a secure request. When the TLS certificate expires, this value will need to be updated. You can explore other options for managing this such as the

ESP8266 IoT Framework

as described in Maakbaas' article.

To get the project up and running, you can get the fingerprint manually by using Chrome's developer tools. Navigate to a page that uses your Auth0 domain such as universal login and open dev tools. Select the Security tab and click View certificate:

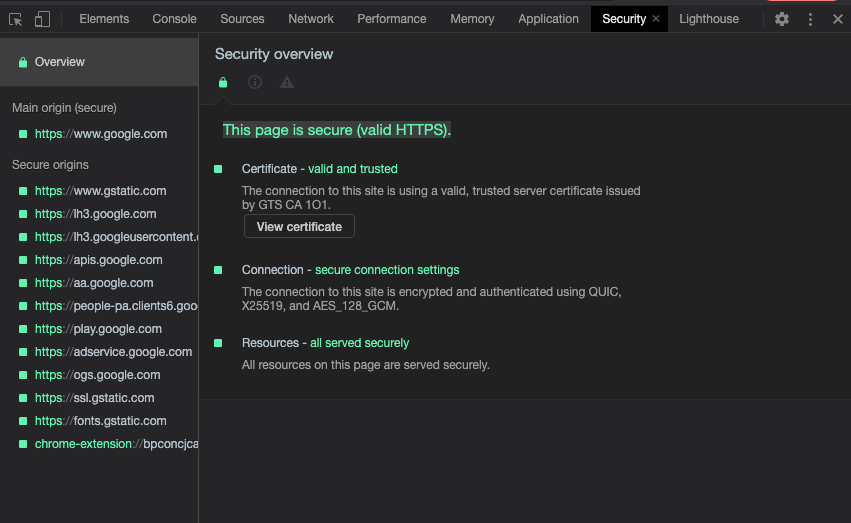

Find certificate fingerprint

Click Details and scroll down to Fingerprints. Copy the SHA-1 fingerprint. Use this value for

SECRET_AUTH_FINGERPRINT

. Repeat for

SECRET_API_FINGERPRINT

and find tha SHA-1 TLS fingerprint for your API by navigating to your API that was deployed to Heroku in Chrome.

Next, open the

user-counter-with-auth

tab in your sketch and import the following libraries and your secrets at the top of the file:

#include <Adafruit_GFX.h>
#include "Adafruit_LEDBackpack.h"
#include <ArduinoJson.h>
#include <ESP8266WiFi.h>
#include <WiFiClientSecure.h>

#include "arduino_secrets.h"

The

setup()

function is much like the non-secure version of the user counter sketch. You will still need to initialize the Serial Monitor, the Wi-Fi connection, and the displays, but this time, split the Wi-Fi and display initialization into their own function for better readability:

// WiFi Setup
char ssid[] = SECRET_SSID;
char pass[] = SECRET_PASS;

// Declare 7-seg displays and user count
Adafruit_7segment highDigitDisplay = Adafruit_7segment(); // left-hand display - displays digits greater than 9,999
Adafruit_7segment lowDigitDisplay = Adafruit_7segment(); // right-hand display - displays digits less than 10,000
int userCount;

// Set up Wi-Fi connection
void setupWifi() {
  Serial.print("Connecting to WiFi");
  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, pass);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println();
  Serial.print("WiFi connected. "); Serial.print("IP address: "); Serial.println(WiFi.localIP());
  Serial.println();
}

// Initialize 7-segment displays
void initDisplays() {
  highDigitDisplay.begin(0x71);
  lowDigitDisplay.begin(0x70);
}

void setup() {
  Serial.begin(115200); Serial.println();
  initDisplays();
  setupWifi();
}

To keep track of the device flow, update the Arduino sketch to include the following state variables. Add the states above the

setup()

function:

// Declare states as global variables
static const int ERROR_STATE = -1;
static const int AUTH_REQUIRED = 0;
static const int POLL_FOR_TOKEN = 1;
static const int GET_USER_COUNT = 2;
static const int REFRESH_TOKEN = 3;

// Set global variable attributes.
static int CURRENT_STATE = AUTH_REQUIRED;

These states will determine which requests should be made in the

loop()

function.

AUTH_REQUIRED

When the state is

AUTH_REQUIRED

, the NodeMCU has not yet received the

device code

nor the

user code

. At this point, a request to the

/oauth/device/code

is necessary to obtain these codes. Once the response is received from Auth0, the verification URI with the

user code

will be printed to the Serial Monitor so that you can activate the device.

POLL_FOR_TOKEN

When the state is

POLL_FOR_TOKEN

, the NodeMCU must make requests to the

/oauth/token

endpoint repeatedly until the user (you) activate the device. Once the device is activated and tokens are received, the access token and refresh token will be stored as global variables.

GET_USER_COUNT

Once the NodeMCU has the tokens saved to variables, it can finally get the user count and display it on the 7-segment displays. It will continue to use the access token until a

401 Unauthorized

response is received which most likely means that the access token has expired.

REFRESH_TOKEN

Finally, when the access token has expired, another request to the

/oauth/token

endpoint will be made to get a new access token by sending the refresh token.

ERROR_STATE

Something has gone wrong!

Add a switch to the

loop()

function using the states:

void loop() {
  switch (CURRENT_STATE) {
    case AUTH_REQUIRED:
      // Send POST to /oauth/device/code and print the returned `user code` to the Serial Monitor and set value for device_code
      break;
    case POLL_FOR_TOKEN:
      // Send POST to /oauth/token using the device code. If an access token is returned, the user has activated the device
      break;
    case GET_USER_COUNT:
      // Use access token to get the user count and display it
      break;
    case REFRESH_TOKEN:
      // Use refresh token to get a new access token
      break;
    default:
      Serial.println("ERROR");
      break;
  }
  delay(3000);
}

You'll need to write functions to handle each of these states, but first, your sketch will need more information to make any of these requests. Add the following to the global variables declared above the

setup()

function:

// SSL Setup
const int httpsPort = 443;

const char* authHost = SECRET_DOMAIN;
char auth_fingerprint[] PROGMEM = SECRET_AUTH_FINGERPRINT;

const char* apiHost = SECRET_API_DOMAIN;
char api_fingerprint[] PROGMEM = SECRET_API_FINGERPRINT;

// Auth0 Application Settings
String client_id = SECRET_CLIENT_ID;
String client_secret = SECRET_CLIENT_SECRET;
String audience = SECRET_AUDIENCE;
String scope = "offline_access";

// Device flow
String device_grant_type = "urn:ietf:params:oauth:grant-type:device_code";
String refresh_grant_type = "refresh_token";
String code_endpoint = "/oauth/device/code";
String token_endpoint = "/oauth/token";
String verification_uri;
String device_code;

// Tokens
String access_token = "";
String refresh_token = "";

Now that you have added all of the necessary information to carry out the Device Authorization Flow, you can begin setting up the requests. Add a function to handle secure requests. All of the state handler functions you'll add will call this function to send requests. Add this function right below the global variables:

// Send a secure request
String request(const char* server, char* fingerprint, String header, String data = "") {
  String response = "";

  // Use WiFiClientSecure class to create TLS connection
  WiFiClientSecure client;

  client.setFingerprint(fingerprint);
  client.setTimeout(15000);
  delay(1000);

  if (client.connect(server, httpsPort)) {
    String request = (data == "") ? header : header + data;
    client.print(request);

    while (client.connected()) {
      if(client.find("HTTP/1.1 ")) {
        String status_code = client.readStringUntil('\r');
        if (status_code != "200 OK") {
          #ifdef DEBUG
            Serial.println("There was an error");
          #endif
          response = status_code;
          break;
        } else {
          String line = client.readStringUntil('\r');
          response += line;
        }
      }
    }
  } else {
    Serial.println("Error: Could not connect");
    CURRENT_STATE = ERROR_STATE;
  }

  return response;
}

This function will connect the provided host, send a secure request, and parse and return the returned data. This function will technically work, but it would be difficult to see what is happening with the requests without printing output to the Serial Monitor. Define a

debug

variable at the top of the global variables. Comment out this line once the sketch is working properly to reduce noise, but if you need to see more information, leave the variable defined.

#define DEBUG true
...
// other global variables
...

// Send a secure request
String request(const char* server, char* fingerprint, String header, String data = "") {
  String response = "";

  // Use WiFiClientSecure class to create TLS connection
  WiFiClientSecure client;

  client.setFingerprint(fingerprint);
  client.setTimeout(15000);
  delay(1000);

  #ifdef DEBUG
    Serial.print("Connecting to: "); Serial.println(server);
    Serial.println();
  #endif

  if (client.connect(server, httpsPort)) {
    String request = (data == "") ? header : header + data;
    client.print(request);

    while (client.connected()) {
      if(client.find("HTTP/1.1 ")) {
        String status_code = client.readStringUntil('\r');
        #ifdef DEBUG
          Serial.print("Status code: "); Serial.println(status_code);
        #endif
        if (status_code != "200 OK") {
          #ifdef DEBUG
            Serial.println("There was an error");
          #endif
          response = status_code;
          break;
        } else {
          if (client.find("\r\n\r\n")) {
            #ifdef DEBUG
              Serial.println("Data:");
            #endif
          }
          String line = client.readStringUntil('\r');
          #ifdef DEBUG
            Serial.println(line);
          #endif
          response += line;
        }
      }
    }
  } else {
    Serial.println("Error: Could not connect");
    CURRENT_STATE = ERROR_STATE;
  }

  return response;
}

Next, use the

request()

function in the first state handler function

requestCodes()

// Send POST to /oauth/device/code to get the device code and prompt user to activate device
void requestCodes() {
  String postData = "";
  postData += "&client_id=" + client_id;
  postData += "&audience=" + audience;
  postData += "&scope=" + scope;
  postData += "&grant_type=" + device_grant_type;
  String postHeader = "";
  postHeader += ("POST " + code_endpoint + " HTTP/1.0\r\n");
  postHeader += ("Host: " + String(authHost) + ":" + String(httpsPort) + "\r\n");
  postHeader += ("Connection: close\r\n");
  postHeader += ("Content-Type: application/x-www-form-urlencoded\r\n");
  postHeader += ("Content-Length: ");
  postHeader += (postData.length());
  postHeader += ("\r\n\r\n");
  String response = request(authHost, auth_fingerprint, postHeader, postData);
  DynamicJsonDocument doc(1024);
  deserializeJson(doc, response);
  device_code = doc["device_code"].as<String>();
  verification_uri = doc["verification_uri_complete"].as<String>();
  if (device_code == "null") {
    CURRENT_STATE = ERROR_STATE;
    return;
  }
  Serial.println("Please activate this device: " + verification_uri);
  Serial.println();
  CURRENT_STATE = POLL_FOR_TOKEN;
}

Call

requestCodes()

in the

switch

statement under

AUTH_REQUIRED

void loop() {
  switch (CURRENT_STATE) {
    case AUTH_REQUIRED:
      // Send POST to /oauth/device/code and print the returned `user code` to the Serial Monitor and set value for device_code
      requestCodes();
      break;
    case POLL_FOR_TOKEN:
      // Send POST to /oauth/token using the device code. If an access token is returned, the user has activated the device
      break;
    case GET_USER_COUNT:
      // Use access token to get the user count and display it
      break;
    case REFRESH_TOKEN:
      // Use refresh token to get a new access token
      break;
    default:
      Serial.println("ERROR");
      break;
  }
  delay(3000);
}

Next, write a function that will make a request to the token endpoint. It will need to be able to send a request to get the initial access token as well as refresh the access token after it has expired:

// Send POST to /oauth/token to get the access token.
// When `refresh` is true, use refresh token to get a new access token
void requestToken(bool refresh = false) {
  String postData = "";
  if (refresh) {
    postData += "&client_id=" + client_id;
    postData += "&client_secret=" + client_secret;
    postData += "&refresh_token=" + refresh_token;
    postData += "&grant_type=" + refresh_grant_type;
  } else {
    postData += "&client_id=" + client_id;
    postData += "&device_code=" + device_code;
    postData += "&grant_type=" + device_grant_type;
  }

  String postHeader = "";
  postHeader += ("POST " + token_endpoint + " HTTP/1.0\r\n");
  postHeader += ("Host: " + String(authHost) + ":" + String(httpsPort) + "\r\n");
  postHeader += ("Connection: close\r\n");
  postHeader += ("Content-Type: application/x-www-form-urlencoded\r\n");
  postHeader += ("Content-Length: ");
  postHeader += (postData.length());
  postHeader += ("\r\n\r\n");
  String response = request(authHost, auth_fingerprint, postHeader, postData);
  #ifdef DEBUG
    Serial.println(response);
  #endif
  DynamicJsonDocument doc(1024);
  deserializeJson(doc, response);

  if (doc["refresh_token"]) {
    refresh_token = doc["refresh_token"].as<String>();
  }
  if (doc["access_token"]) {
    access_token = doc["access_token"].as<String>();
    CURRENT_STATE = GET_USER_COUNT;
  }
}

Update the switch statement to call this function under

POLL_FOR_TOKEN

and

REFRESH_TOKEN

, passing

true

for

refresh

under

REFRESH_TOKEN

void loop() {
  switch (CURRENT_STATE) {
    case AUTH_REQUIRED:
      // Send POST to /oauth/device/code and print the returned `user code` to the Serial Monitor and set value for device_code
      requestCodes();
      break;
    case POLL_FOR_TOKEN:
      // Send POST to /oauth/token using the device code. If an access token is returned, the user has activated the device
      requestToken();
      break;
    case GET_USER_COUNT:
      // Use access token to get the user count and display it
      break;
    case REFRESH_TOKEN:
      // Use refresh token to get a new access token
      requestToken();
      break;
    default:
      Serial.println("ERROR");
      break;
  }
  delay(3000);
}

Finally, add a function for requesting the user count and displaying it on the 7-segment displays. Seperate the responsibility of displaying the data into its own functions:

void showUserCount() {
  uint16_t highDigits = userCount / 10000; // Value on left (high digits) display
  uint16_t lowDigits = userCount % 10000; // Value on right (low digits) display

  highDigitDisplay.print(highDigits, DEC);
  lowDigitDisplay.print(lowDigits, DEC);

  // Place zeroes in front of the lowDigit value if userCount is greater than 10,000
  if (highDigits) {
    if (lowDigits < 1000) {
      lowDigitDisplay.writeDigitNum(0, 0);
    }
    if (lowDigits < 100) {
      lowDigitDisplay.writeDigitNum(1, 0);
    }
    if (lowDigits < 10) {
      lowDigitDisplay.writeDigitNum(3, 0);
    }
  } else {
    highDigitDisplay.clear();
  }

  highDigitDisplay.writeDisplay();
  lowDigitDisplay.writeDisplay();
}

// Send GET to User Count API
void getUserCount() {
  String getHeader = "";
  getHeader += ("GET / HTTP/1.0\r\n");
  getHeader += ("Host: " + String(apiHost) + ":" + String(httpsPort) + "\r\n");
  getHeader += ("Connection: close\r\n");
  getHeader += ("Authorization: Bearer " + access_token + "\r\n");
  getHeader += ("Content-Type: application/json; charset=UTF-8\r\n");
  getHeader += ("\r\n\r\n");
  String response = request(apiHost, api_fingerprint, getHeader);
  if (response == "401 Unauthorized") {
    CURRENT_STATE = REFRESH_TOKEN;
    return;
  }
  #ifdef DEBUG
    Serial.println(response);
  #endif
  DynamicJsonDocument doc(1024);
  deserializeJson(doc, response);
  userCount = doc["userCount"];
  showUserCount();
}

Update the

loop()

function once more:

void loop() {
  switch (CURRENT_STATE) {
    case AUTH_REQUIRED:
      // Send POST to /oauth/device/code and print the returned `user code` to the Serial Monitor and set value for device_code
      requestCodes();
      break;
    case POLL_FOR_TOKEN:
      // Send POST to /oauth/token using the device code. If an access token is returned, the user has activated the device
      requestToken();
      break;
    case GET_USER_COUNT:
      // Use access token to get the user count and display it
      getUserCount();
      break;
    case REFRESH_TOKEN:
      // Use refresh token to get a new access token
      requestToken();
      break;
    default:
      Serial.println("ERROR");
      break;
  }
  delay(3000);
}

The finished sketch should look something like this:

#include <Adafruit_GFX.h>
#include "Adafruit_LEDBackpack.h"
#include <ArduinoJson.h>
#include <ESP8266WiFi.h>
#include <WiFiClientSecure.h>

#include "arduino_secrets.h"

// #define DEBUG true

// WiFi Setup
char ssid[] = SECRET_SSID;
char pass[] = SECRET_PASS;

// Declare 7-seg displays and user count
Adafruit_7segment highDigitDisplay = Adafruit_7segment(); // left-hand display - displays digits greater than 9,999
Adafruit_7segment lowDigitDisplay = Adafruit_7segment(); // right-hand display - displays digits less than 10,000
int userCount;

// Auth0 Application Settings
String client_id = SECRET_CLIENT_ID;
String client_secret = SECRET_CLIENT_SECRET;
String audience = SECRET_AUDIENCE;
String scope = "offline_access";

// Tokens
String access_token = "";
String refresh_token = "";

// SSL Setup
const int httpsPort = 443;

const char* authHost = SECRET_DOMAIN;
char auth_fingerprint[] PROGMEM = SECRET_AUTH_FINGERPRINT;

const char* apiHost = SECRET_API_DOMAIN;
char api_fingerprint[] PROGMEM = SECRET_API_FINGERPRINT;

// Device flow
String device_grant_type = "urn:ietf:params:oauth:grant-type:device_code";
String refresh_grant_type = "refresh_token";
String code_endpoint = "/oauth/device/code";
String token_endpoint = "/oauth/token";
String verification_uri;
String device_code;

// Declare states as global variables
static const int ERROR_STATE = -1;
static const int AUTH_REQUIRED = 0;
static const int POLL_FOR_TOKEN = 1;
static const int GET_USER_COUNT = 2;
static const int REFRESH_TOKEN = 3;

// Set global variable attributes.
static int CURRENT_STATE = AUTH_REQUIRED;

// Send a secure request
String request(const char* server, char* fingerprint, String header, String data = "") {
  String response = "";

  // Use WiFiClientSecure class to create TLS connection
  WiFiClientSecure client;

  client.setFingerprint(fingerprint);
  client.setTimeout(15000);
  delay(1000);

  #ifdef DEBUG
    Serial.print("Connecting to: "); Serial.println(server);
    Serial.println();
  #endif

  if (client.connect(server, httpsPort)) {
    String request = (data == "") ? header : header + data;
    client.print(request);

    while (client.connected()) {
      if(client.find("HTTP/1.1 ")) {
        String status_code = client.readStringUntil('\r');
        #ifdef DEBUG
          Serial.print("Status code: "); Serial.println(status_code);
        #endif
        if (status_code != "200 OK") {
          #ifdef DEBUG
            Serial.println("There was an error");
          #endif
          response = status_code;
          break;
        } else {
          if (client.find("\r\n\r\n")) {
            #ifdef DEBUG
              Serial.println("Data:");
            #endif
          }
          String line = client.readStringUntil('\r');
          #ifdef DEBUG
            Serial.println(line);
          #endif
          response += line;
        }
      }
    }
  } else {
    Serial.println("Error: Could not connect");
    CURRENT_STATE = ERROR_STATE;
  }

  return response;
}

// Send POST to /oauth/device/code to get the device code and prompt user to activate device
void requestCodes() {
  String postData = "";
  postData += "&client_id=" + client_id;
  postData += "&audience=" + audience;
  postData += "&scope=" + scope;
  postData += "&grant_type=" + device_grant_type;
  String postHeader = "";
  postHeader += ("POST " + code_endpoint + " HTTP/1.0\r\n");
  postHeader += ("Host: " + String(authHost) + ":" + String(httpsPort) + "\r\n");
  postHeader += ("Connection: close\r\n");
  postHeader += ("Content-Type: application/x-www-form-urlencoded\r\n");
  postHeader += ("Content-Length: ");
  postHeader += (postData.length());
  postHeader += ("\r\n\r\n");
  String response = request(authHost, auth_fingerprint, postHeader, postData);
  DynamicJsonDocument doc(1024);
  deserializeJson(doc, response);
  device_code = doc["device_code"].as<String>();
  verification_uri = doc["verification_uri_complete"].as<String>();
  if (device_code == "null") {
    CURRENT_STATE = ERROR_STATE;
    return;
  }
  Serial.println("Please activate this device: " + verification_uri);
  Serial.println();
  CURRENT_STATE = POLL_FOR_TOKEN;
}

// Send POST to /oauth/token to get the access token.
// When `refresh` is true, use Refresh Token to get a new access token
void requestToken(bool refresh = false) {
  String postData = "";
  if (refresh) {
    postData += "&client_id=" + client_id;
    postData += "&client_secret=" + client_secret;
    postData += "&refresh_token=" + refresh_token;
    postData += "&grant_type=" + refresh_grant_type;
  } else {
    postData += "&client_id=" + client_id;
    postData += "&device_code=" + device_code;
    postData += "&grant_type=" + device_grant_type;
  }

  String postHeader = "";
  postHeader += ("POST " + token_endpoint + " HTTP/1.0\r\n");
  postHeader += ("Host: " + String(authHost) + ":" + String(httpsPort) + "\r\n");
  postHeader += ("Connection: close\r\n");
  postHeader += ("Content-Type: application/x-www-form-urlencoded\r\n");
  postHeader += ("Content-Length: ");
  postHeader += (postData.length());
  postHeader += ("\r\n\r\n");
  String response = request(authHost, auth_fingerprint, postHeader, postData);
  #ifdef DEBUG
    Serial.println(response);
  #endif
  DynamicJsonDocument doc(1024);
  deserializeJson(doc, response);

  if (doc["refresh_token"]) {
    refresh_token = doc["refresh_token"].as<String>();
  }
  if (doc["access_token"]) {
    access_token = doc["access_token"].as<String>();
    CURRENT_STATE = GET_USER_COUNT;
  }
}

void showUserCount() {
  uint16_t highDigits = userCount / 10000; // Value on left (high digits) display
  uint16_t lowDigits = userCount % 10000; // Value on right (low digits) display

  highDigitDisplay.print(highDigits, DEC);
  lowDigitDisplay.print(lowDigits, DEC);

  // Place zeroes in front of the lowDigit value if userCount is greater than 10,000
  if (highDigits) {
    if (lowDigits < 1000) {
      lowDigitDisplay.writeDigitNum(0, 0);
    }
    if (lowDigits < 100) {
      lowDigitDisplay.writeDigitNum(1, 0);
    }
    if (lowDigits < 10) {
      lowDigitDisplay.writeDigitNum(3, 0);
    }
  } else {
    highDigitDisplay.clear();
  }

  highDigitDisplay.writeDisplay();
  lowDigitDisplay.writeDisplay();
}

// Send GET to User Count API
void getUserCount() {
  String getHeader = "";
  getHeader += ("GET / HTTP/1.0\r\n");
  getHeader += ("Host: " + String(apiHost) + ":" + String(httpsPort) + "\r\n");
  getHeader += ("Connection: close\r\n");
  getHeader += ("Authorization: Bearer " + access_token + "\r\n");
  getHeader += ("Content-Type: application/json; charset=UTF-8\r\n");
  getHeader += ("\r\n\r\n");
  String response = request(apiHost, api_fingerprint, getHeader);
  if (response == "401 Unauthorized") {
    CURRENT_STATE = REFRESH_TOKEN;
    return;
  }
  #ifdef DEBUG
    Serial.println(response);
  #endif
  DynamicJsonDocument doc(1024);
  deserializeJson(doc, response);
  userCount = doc["userCount"];
  showUserCount();
}

// Set up Wi-Fi connection
void setupWifi() {
  Serial.print("Connecting to WiFi");
  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, pass);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println();
  Serial.print("WiFi connected. "); Serial.print("IP address: "); Serial.println(WiFi.localIP());
  Serial.println();
}

// Initialize 7-segment displays
void initDisplays() {
  highDigitDisplay.begin(0x71);
  lowDigitDisplay.begin(0x70);
}

void setup() {
  Serial.begin(115200); Serial.println();
  initDisplays();
  setupWifi();
}

void loop() {
  switch (CURRENT_STATE) {
    case AUTH_REQUIRED:
      // Send POST to /oauth/device/code and print the returned `user code` to the Serial Monitor and set value for device_code
      requestCodes();
      break;
    case POLL_FOR_TOKEN:
      // Send POST to /oauth/token using the device code. If an access token is returned, the user has activated the device
      requestToken();
      break;
    case GET_USER_COUNT:
      // Use access token to get the user count and display it
      getUserCount();
      break;
    case REFRESH_TOKEN:
      // Use refresh token to get a new access token
      requestToken(true);
      break;
    default:
      Serial.println("ERROR");
      break;
  }
  delay(3000);
}

Upload the program and open up the Serial Monitor. Visit the verification URI when prompted to activate the device. The user count will show up on the 7-segment displays.

Conclusion

In this tutorial, you built and deployed a user count API, created a rule for incrementing the user count, added authentication to your API, and implemented Client Credentials Flow for your rule and Device Authorization Flow for your Arduino sketch.

Build a User Signup Counter with Arduino, Part 2

Overview

Build user count API

Deploy the user count API to Heroku

Create a rule to increment the user count

Call API with Arduino

Add authentication to user count API

Register client applications

Configure machine-to-machine application for rule

Configure native application for NodeMCU

Implement Device Authorization Flow

`AUTH_REQUIRED`

`POLL_FOR_TOKEN`

`GET_USER_COUNT`

`REFRESH_TOKEN`

`ERROR_STATE`

Conclusion

Build a User Signup Counter with Arduino, Part 1

Arduino Selects Auth0 as Standardized Login for Open-Source Ecosystem
