Ruby On Rails API: Authentication

Gravatar for andres.aguiar@auth0.com
By Andres Aguiar
Auth0

Sample Project

Download a sample project specific to this tutorial configured with your Auth0 API Keys.

System Requirements
  • Ruby 2.1.8
  • Rails 4.2.5.1
Show requirements

This tutorial shows you how to use the authorization features in the OAuth 2.0 framework to limit access to your or third-party applications. For more information, read the API authorization documentation.

Create a Resource Server (API)

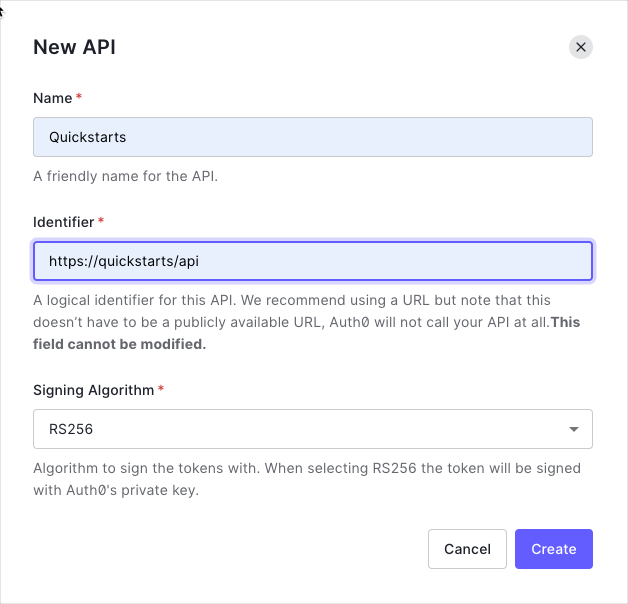

In the APIs section of the Auth0 dashboard, click Create API. Provide a name and an identifier for your API. You will use the identifier as an audience later, when you are configuring the Access Token verification. For Signing Algorithm, select RS256.

Create API

Add API Authorization

To restrict access to the resources served by your API, check the incoming requests for valid authorization information. The authorization information is stored in the Access Token created for the user and needs to be sent in the Authorization header. To see if the token is valid, check it against the JSON Web Key Set (JWKS) for your Auth0 account. To learn more about validating Access Tokens, read the Verify Access Tokens tutorial.

This sample demonstrates how to check for a JWT in the Authorization header of an incoming HTTP request and verify that it is valid. The validity check is done using the jwt Gem within a custom JsonWebToken class. A Concern called Secured is used to mark endpoints which require authentication through an incoming access_token. If the token is valid, the resources which are served by the endpoint can be released, otherwise a 401 Authorization error will be returned.

Install the Dependencies

Install the jwt Gem.

gem `jwt`
bundle install

Create a JsonWebToken Class

By default, your API uses RS256 as the algorithm for signing tokens. Since RS256 uses a private/public keypair, it verifies the tokens against the public key for your Auth0 account. You can access this public key here.

We recommend using the default RS256 signing algorithm for your API. If you need to use the HS256 algorithm, see the HS256 integration sample.

Create a class called JsonWebToken which decodes and verifies the incoming access_token taken from the Authorization header of the request. The public key for your Auth0 tenant can be fetched to verify the token.

# lib/json_web_token.rb

# frozen_string_literal: true
require 'net/http'
require 'uri'

class JsonWebToken
  def self.verify(token)
    JWT.decode(token, nil,
               true, # Verify the signature of this token
               algorithm: 'RS256',
               iss: 'https://YOUR_AUTH0_DOMAIN/',
               verify_iss: true,
               aud: Rails.application.secrets.auth0_api_audience,
               verify_aud: true) do |header|
      jwks_hash[header['kid']]
    end
  end

  def self.jwks_hash
    jwks_raw = Net::HTTP.get URI("https://YOUR_AUTH0_DOMAIN/.well-known/jwks.json")
    jwks_keys = Array(JSON.parse(jwks_raw)['keys'])
    Hash[
      jwks_keys
      .map do |k|
        [
          k['kid'],
          OpenSSL::X509::Certificate.new(
            Base64.decode64(k['x5c'].first)
          ).public_key
        ]
      end
    ]
  end
end

Define a Secured Concern

Create a Concern called Secured which looks for the access_token in the Authorization header of an incoming request. If the token is present, it should be passed to JsonWebToken.verify.

# app/controllers/concerns/secured.rb

# frozen_string_literal: true
module Secured
  extend ActiveSupport::Concern

  included do
    before_action :authenticate_request!
  end

  private

  def authenticate_request!
    auth_token
  rescue JWT::VerificationError, JWT::DecodeError
    render json: { errors: ['Not Authenticated'] }, status: :unauthorized
  end

  def http_token
    if request.headers['Authorization'].present?
      request.headers['Authorization'].split(' ').last
    end
  end

  def auth_token
    JsonWebToken.verify(http_token)
  end
end

Apply Authentication to Routes

With the Secured Concern in place, you can now apply it to whichever endpoints you wish to protect. Applying the Concern means that a valid access_token must be present in the request before the resource can be released.

# app/controllers/public_controller.rb

# frozen_string_literal: true
class PublicController < ActionController::API
  # This route doesn't need authentication
  def public
    render json: { message: 'Hello from a public endpoint! You don't need to be authenticated to see this.' }
  end
end
# app/controllers/private_controller.rb

# frozen_string_literal: true
class PrivateController < ActionController::API
  include Secured

  def private
    render json: 'Hello from a private endpoint! You need to be authenticated to see this.'
  end
end

Configure Scopes

The JsonWebToken.verify method above verifies that the access_token included in the request is valid; however, it doesn't yet include any mechanism for checking that the token has the sufficient scope to access the requested resources.

Scopes provide a way for you to define which resources should be accessible by the user holding a given access_token. For example, you might choose to permit read access to a messages resource if a user has a manager access level, or a write access to that resource if they are an administrator.

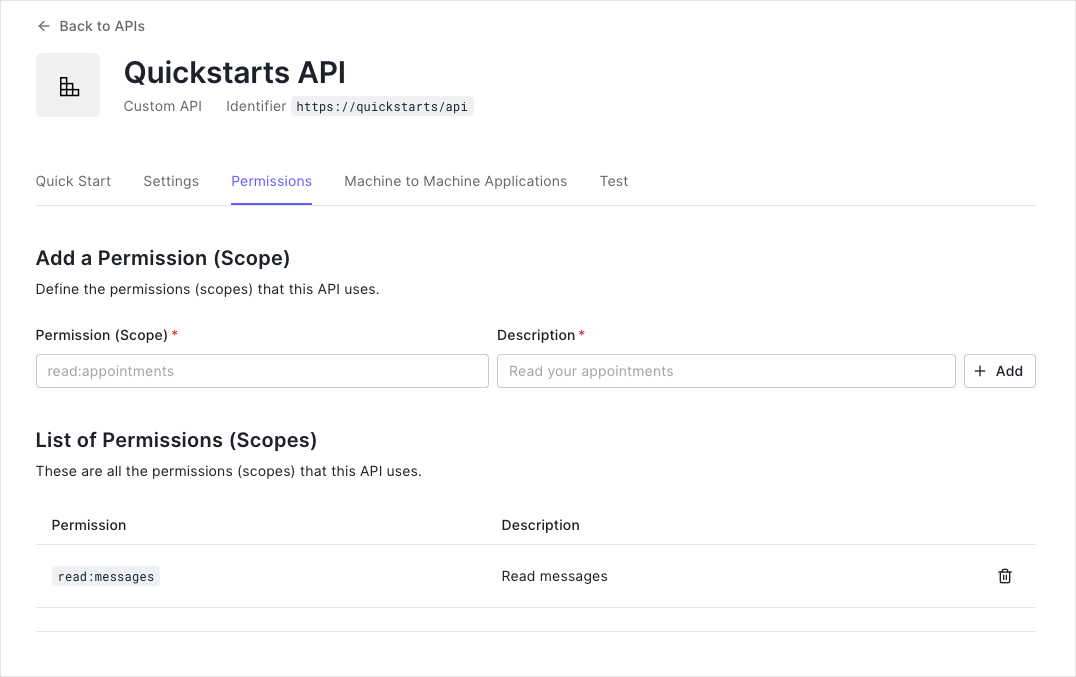

To configure scopes in your Auth0 dashboard, navigate to your API and choose the Scopes tab. In this area you can apply any scopes you wish, including one called read:messages, which will be used in this example.

Protect Individual Endpoints

To look for a particular scope in an access_token, provide an array of required scopes and check if they are present in the payload of the token.

In this example the SCOPES array for the given key /private-scoped is intersected with the scopes coming in the payload, to determine if it contains one or more items from the other array.

# app/controllers/private_controller.rb

# frozen_string_literal: true
class PrivateController < ActionController::API
  include Secured

  # ...

  def private_scoped
    render json: { message: 'Hello from a private endpoint! You need to be authenticated and have a scope of read:messages to see this.' }
  end
end
# app/controllers/concerns/secured.rb

  SCOPES = {
    '/private' => nil,
    '/private-scoped'    => ['read:messages']
  }

  private

  def authenticate_request!
    @auth_payload, @auth_header = auth_token

    render json: { errors: ['Insufficient scope'] }, status: :unauthorized unless scope_included
  rescue JWT::VerificationError, JWT::DecodeError
    render json: { errors: ['Not Authenticated'] }, status: :unauthorized
  end

  def scope_included
    if SCOPES[request.env['PATH_INFO']] == nil
      true
    else
      # The intersection of the scopes included in the given JWT and the ones in the SCOPES hash needed to access
      # the PATH_INFO, should contain at least one element
      (String(@auth_payload['scope']).split(' ') & (SCOPES[request.env['PATH_INFO']])).any?
    end
  end

With this configuration in place, only access_tokens which have a scope of read:messages will be allowed to access this endpoint.

Next Tutorial
2. Using your API
