Android: Login

By Luciano Balmaceda

This quickstart demonstrates how to add user login to an Android application using Auth0. We recommend that you log in to follow this quickstart with examples configured for your account.

I want to integrate with my app

15 minutes

Configure Auth0
Install the Auth0 Android SDK
Add Login to your App
Add Logout to your App
Show User Profile Information

I want to explore a sample app

2 minutes

Get a sample configured with your account settings or check it out on Github.

View on Github

System requirements: Android Studio 4.1.0 | Android SDK 30 | Emulator - Android 11.0

New to Auth? Learn How Auth0 works, how it integrates with Native Applications and which protocol it uses.

When you signed up for Auth0, a new application was created for you, or you could have created a new one. You will need some details about that application to communicate with Auth0. You can get these details from the Application Settings section in the Auth0 dashboard.

App Dashboard

When using the Default App with a Native or Single Page Application, ensure to update the Token Endpoint Authentication Method to None and set the Application Type to either SPA or Native.

You need the following information:

Domain
Client ID

If you download the sample from the top of this page, these details are filled out for you.

A callback URL is a URL in your application where Auth0 redirects the user after they have authenticated. The callback URL for your app must be added to the Allowed Callback URLs field in your Application Settings. If this field is not set, users will be unable to log in to the application and will get an error.

If you are following along with the sample project you downloaded from the top of this page, you should set the Allowed Callback URL to demo://YOUR_DOMAIN/android/YOUR_APP_PACKAGE_NAME/callback.

Replace YOUR_APP_PACKAGE_NAME with your application's package name, available as the applicationId attribute in the app/build.gradle file.

A logout URL is a URL in your application that Auth0 can return to after the user has been logged out of the authorization server. This is specified in the returnTo query parameter. The logout URL for your app must be added to the Allowed Logout URLs field in your Application Settings. If this field is not set, users will be unable to log out from the application and will get an error.

If you are following along with the sample project you downloaded from the top of this page, the logout URL you need to add to the Allowed Logout URLs field is demo://YOUR_DOMAIN/android/YOUR_APP_PACKAGE_NAME/callback.

Replace YOUR_APP_PACKAGE_NAME with your application's package name, available as the applicationId attribute in the app/build.gradle file.

Add the Auth0 Android SDK into your project. The library will make requests to the Auth0's Authentication and Management APIs.

In your app's build.gradle dependencies section, add the following:

dependencies {
  // Add the Auth0 Android SDK
  implementation 'com.auth0.android:auth0:2.+'
}

Was this helpful?/

In the android section, target Java 8 byte code for Android and Kotlin plugins respectively.

android {
  compileOptions {
    sourceCompatibility JavaVersion.VERSION_1_8
    targetCompatibility JavaVersion.VERSION_1_8
  }
  kotlinOptions {
    jvmTarget = '1.8'
  }
}

Was this helpful?/

Sync Project with Gradle Files

Remember to synchronize using the Android Studio prompt or run ./gradlew clean build from the command line. For more information about Gradle usage, check their official documentation.

Add manifest placeholders required by the SDK. The placeholders are used internally to define an intent-filter that captures the authentication callback URL.

To add the manifest placeholders, add the next line:

// app/build.gradle

apply plugin: 'com.android.application'
compileSdkVersion 30
android {
    defaultConfig {
        applicationId "com.auth0.samples"
        minSdkVersion 21
        targetSdkVersion 30
        // ...

        // ---> Add the next line
        manifestPlaceholders = [auth0Domain: "@string/com_auth0_domain", auth0Scheme: "demo"]
        // <---
    }
}

Was this helpful?/

You do not need to declare a specific intent-filter for your activity, because you have defined the manifest placeholders with your Auth0 Domain and Scheme values and the library will handle the redirection for you.

Finally, ensure that the android.permissions.INTERNET permission is specified in the AndroidManifest.xml file:

<uses-permission android:name="android.permission.INTERNET" />

Was this helpful?/

Run Sync Project with Gradle Files inside Android Studio or execute ./gradlew clean assembleDebug from the command line.

For more information about using Gradle, check the Gradle official documentation.

Universal Login is the easiest way to set up authentication in your application. We recommend using it for the best experience, best security and the fullest array of features.

In the onCreate method, create a new instance of the Auth0 class to hold user credentials:

// Import the parts needed by the SDK
import com.auth0.android.Auth0
import com.auth0.android.provider.WebAuthProvider

class MainActivity : AppCompatActivity() {

  private lateinit var account: Auth0

  override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)

      // Set up the account object with the Auth0 application details
      account = Auth0(
          "YOUR_CLIENT_ID",
          "YOUR_DOMAIN"
      )
  }
}

Was this helpful?/

We suggest you do not hardcode the values for clientId and domain as you may need to change them in the future. Instead, use String Resources, such as @string/com_auth0_domain, to define the values.

Finally, create a loginWithBrowser method and use the WebAuthProvider class to authenticate with any connection you enabled on your application in the Auth0 dashboard.

private fun loginWithBrowser() {
    // Setup the WebAuthProvider, using the custom scheme and scope.

    WebAuthProvider.login(account)
        .withScheme("demo")
        .withScope("openid profile email")
        // Launch the authentication passing the callback where the results will be received
        .start(this, object : Callback<Credentials, AuthenticationException> {
            // Called when there is an authentication failure
            override fun onFailure(exception: AuthenticationException) {
                // Something went wrong!
            }

            // Called when authentication completed successfully
            override fun onSuccess(credentials: Credentials) {
              // Get the access token from the credentials object.
              // This can be used to call APIs
              val accessToken = credentials.accessToken
            }
        })
}

Was this helpful?/

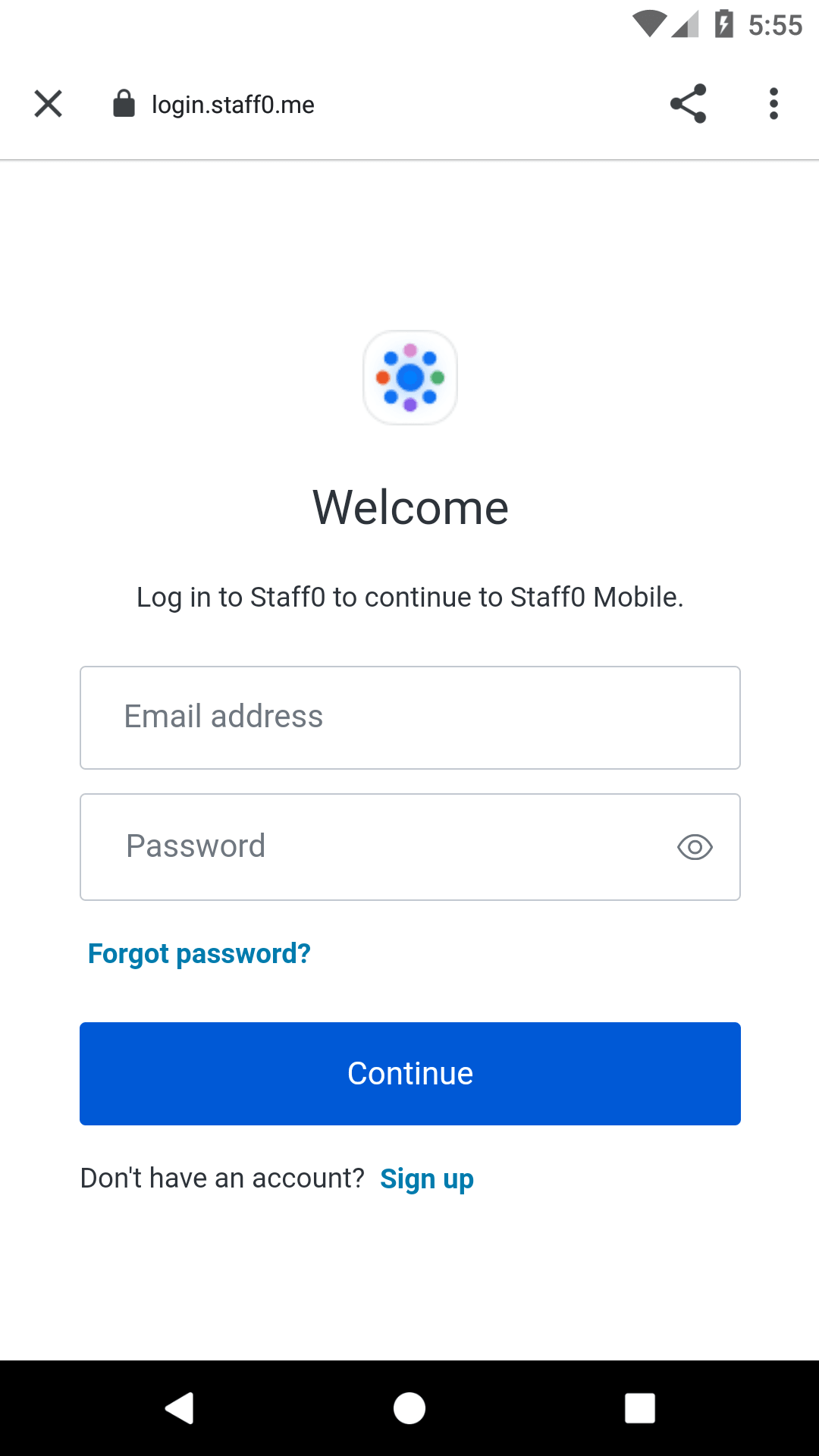

After you call the WebAuthProvider#start function, the browser launches and shows the login page. Once the user authenticates, the callback URL is called. The callback URL contains the final result of the authentication process.

There are many options to customize the authentication with the WebAuthProvider builder. You can read about them in the Auth0 SDK for Android documentation.

Checkpoint

Add a button to your application that calls loginWithBrowser. When you click it, verify that your Android application redirects you to the Auth0 Universal Login page and that you can now log in or sign up using a username and password or a social provider.

Once that's complete, verify that Auth0 redirects back to your app.

Use WebAuthProvider to remove the cookie set by the Browser at authentication time, so that the users are forced to re-enter their credentials the next time they try to authenticate.

Add a logout method to your app to remove the user's session and log them out of the app:

private fun logout() {
  WebAuthProvider.logout(account)
    .withScheme("demo")
    .start(this, object: Callback<Void?, AuthenticationException> {
      override fun onSuccess(payload: Void?) {
        // The user has been logged out!
      }

      override fun onFailure(error: AuthenticationException) {
        // Something went wrong!
      }
    })
}

Was this helpful?/

The logout is achieved by using the WebAuthProvider class. This call will open the Browser and navigate the user to the logout endpoint. If the log out is cancelled, you might want to take the user back to where they were before attempting to log out.

Checkpoint

Add a button to your app that calls logout and logs the user out of your application. When you click it, verify that your Android app redirects you logout page and back again, and that you are no longer logged in to your application.

Use the AuthenticationAPIClient class to retrieve the user's profile from Auth0. This requires:

The access token as received during the login phase
The profile scope to be included when WebAuthProvider.login is called

The email scope must also be specified if the user's email address is to be retrieved.

This quickstart sets the openid profile email scopes by default during the login step above.

The following demonstrates a function that can be used to retrieve the user's profile and show it on the screen:

private fun showUserProfile(accessToken: String) {
  var client = AuthenticationAPIClient(account)

  // With the access token, call `userInfo` and get the profile from Auth0.
  client.userInfo(accessToken)
    .start(object : Callback<UserProfile, AuthenticationException> {
        override fun onFailure(exception: AuthenticationException) {
            // Something went wrong!
        }

        override fun onSuccess(profile: UserProfile) {
          // We have the user's profile!
          val email = profile.email
          val name = profile.name
        }
  })
}

Was this helpful?/

Checkpoint

Call the showUserProfile function after login and verify that the user's profile information has been returned in the onSuccess callback.

What can you do next?

Configure other identity providers

Enable multifactor authentication

Learn about attack protection

Learn about rules

Did it work?

Any suggestion or typo? Edit on GitHub
