Secure Third-Party Tool Calling in LlamaIndex Using Auth0

Using frameworks like LlamaIndex makes it easy to integrate internal tools with LLMs and expand their capabilities. Even with several internal tools mapped to an LLM, we may still need to integrate with third-party tools. This task becomes more complex when those third-party tools require authentication. In this blog post, you will learn how to implement secure third-party tool calling with LlamaIndex.

Tool Calling and Authentication

Where tools and authentication are concerned, we can distinguish two types of tool calling:

System-level tool calling: the application calls the third-party tool using its own credentials. Regardless of which user interacts with the app, the third-party tool only recognizes the application.
User-level tool calling: the application calls third-party tools on the user’s behalf. With OAuth 2.0, the app obtains an access token from the user’s identity provider that can call the third-party tool. The tool, in turn, recognizes the user. This is useful for auditing and for accessing user-level resources like email, messages, files, etc.

Difference between system level tool calling and user-level tool calling

In both cases we want to keep credentials secure and avoid exposing tokens to the LLMs. But for the second case we also need the user to allow the application to perform a collection of actions on the user’s behalf. This is where Auth0’s Token Vault comes into play.

As the name suggests, Token Vault securely stores tokens that allow the application to access third-party APIs: you don’t need to manage third-party tokens or scopes directly. When a user authenticates with a supported external provider and authorizes access using OAuth scopes, Auth0 stores the external provider’s access and refresh tokens in the Token Vault which organizes these tokens into tokensets, with one tokenset per authorized user connection.

Adding Third-Party Tool Call in a LlamaIndex-Powered Application

For the sake of this tutorial, we will add third-party tool integration to an application that already has LlamaIndex configured called “Teacher’s Aide”. This application serves as a teacher assistant. The app allows a teacher to check student grades, organize classes, and speculate which students are likely to pass the class. The application provides a simple chat-like interface in which the teacher can interact by asking questions about classes and students. Currently, the LLM is able to do the following:

List teacher classes
Get details of a specific teaching class by its ID
List all students
Get details of a unique student by its id

In addition, all authentication is already implemented using Auth0 and all LLM-related tasks are implemented using OpenAI.

In this tutorial, we are going to implement an email send feature on behalf of the teacher. The goal is to allow the teacher to send warnings or motivational messages to students who need help. The LLM will compose the entire email based on the teacher's advice and the students' performance. Ultimately, the email will appear to come from the teacher, but it will have been generated by the LLM on the teacher's behalf.

Prerequisites

Python 3.11 or later
Poetry for dependency management. Check how to install.
An Auth for AI Agents account. Create one.
An OpenAI account and API key. Create one or use any other LLM provider supported by LammaIndex.
Our repository cloned

Cloning and installing dependencies

This is the starter application you'll find in the repository:

── teacher_assistant/
│   ├── main.py              # FastAPI application and routes
│   ├── auth.py              # Auth0 authentication configuration
│   ├── context.py           # Context variables for agent state management
│   ├── grades/
│   │   ├── data.py          # Sample student and class data
│   │   └── model.py         # Data models
│   └── llm/
│       ├── llamaindex_agent.py  # LlamaIndex agent configuration
│       └── send_email.py    # Gmail integration with Auth0 Token Vault
├── static/
│   ├── index.html           # Frontend chat interface
│   └── app.js              # Frontend JavaScript
├── poetry.lock             # Poetry file
├── .env.sample             # Environment variables template
└── README.md

After cloning the repository, you can go to the starter branch step1-starter

git clone https://github.com/auth0/auth0-teachersaide
git switch step1-starter

This branch provides all necessary code to spin up our application, already with authentication and FastAPI integrated. Use poetry to install all dependencies:

poetry install

Now, we are ready to set up Auth0 and fill some environment variables.

Setting up Google Authentication with Auth0

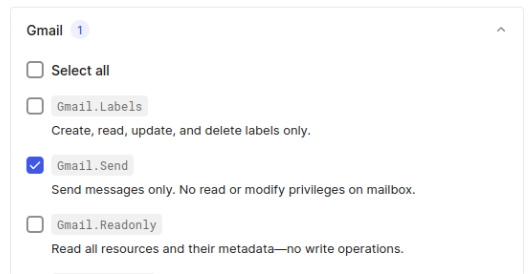

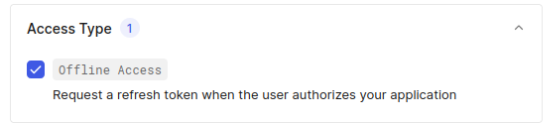

To integrate email functionality, we need to configure how users will authenticate in our application using Google's social login. Follow this documentation to set up Google Authentication and enable the Offline Access and Gmail.Send permissions, which are the only two permissions required for this integration.

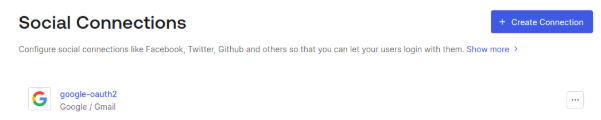

At the end, you should have the social connection google-oauth2 configured.

Setting Up Token Exchange with Token Vault

Now, we need to configure authentication for our agent project. We also need to add Token Exchange with Token Vault enabled. This feature will be able to receive a user’s Google account token with permission to send emails.

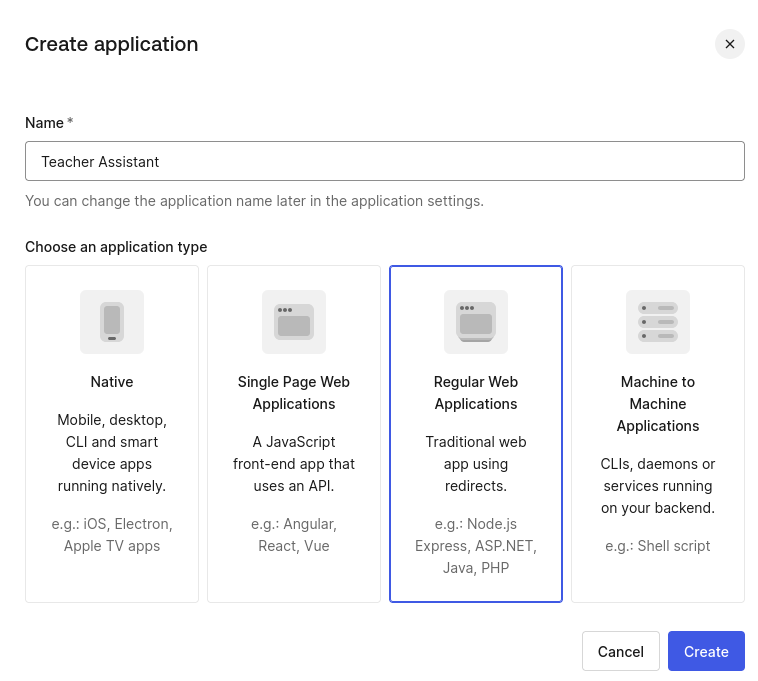

In your Auth0 Dashboard, go to the Applications section and create a new application. Select Regular Web Applications and give the name Teacher Assistant to the application.

After the creation, go to the application settings and fill the following values:

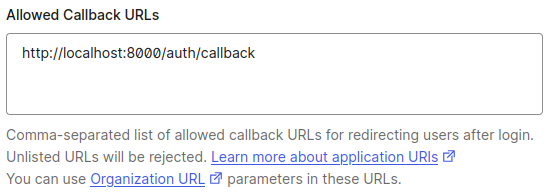

Allowed callback URL - http://localhost:8000/auth/callback

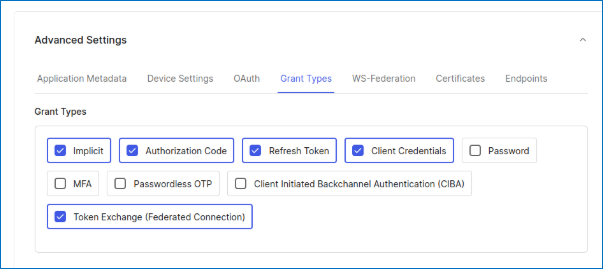

Advanced settings, grant types, also enable Token Exchange (Federated Connection)

In the tab Connections, enable google-oauth2 connection and disable any other connection.

Make sure Token Vault is enabled for your tenant, navigate to Authentication -> Social select google-oauth2, and navigate to the bottom. In the Advanced section enable the toggle enable Token Vault and remember to Save Changes.

Setting up the environment variables

Create a .env file in the root folder with the following content (you can copy the .env.sample file):

AUTH0_DOMAIN="YOUR_AUTH0_DOMAIN"
AUTH0_CLIENT_ID="YOUR_AUTH0_CLIENT_ID"
AUTH0_CLIENT_SECRET="YOUR_AUTH0_CLIENT_SECRET"
APP_SECRET_KEY="use [openssl rand -hex 32] to generate a 32 bytes value"
OPENAI_API_KEY="YOUR_OPEN_AI_KEY"

You must change the values of the following properties, anything else you can keep as is.

AUTH0_DOMAIN, AUTH0_CLIENT_ID and AUTH0_CLIENT_SECRET – You can get it in your Auth0 Application Settings.
APP_SECRET_KEY – This key is used to encrypt the user session as a cookie in the user's browser. You can use the command above to generate a unique value.
OPENAI_API_KEY – You can create an OpenAI API here.
Running the Application

We should now test the application to check if everything is working as expected. Run the following command in the root folder:

poetry run uvicorn main:app --reload

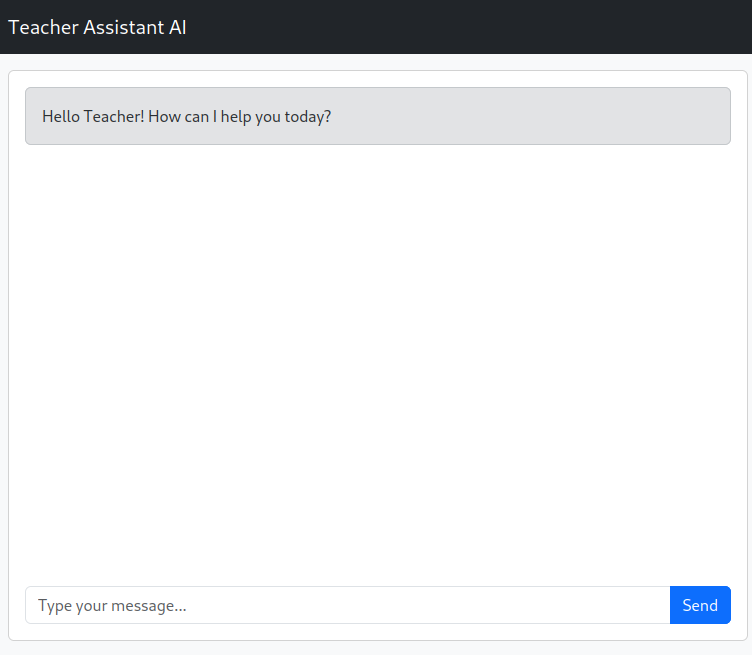

Now, open the browser window and navigate to http://localhost:8000. You will be redirected to Auth0 Universal Login. Login with an GMail account, in the end, you should see a screen like this:

This application already has fictitious data in an in-memory database, so you can start interacting with it. You can check and modify the data at teacher_assistant/grades/data.py file.

Here's a prompt suggestion for the first interaction:

How are my students going this semester?

Which the LLM will respond by giving you a table of all the students, its grades, and some highlights:

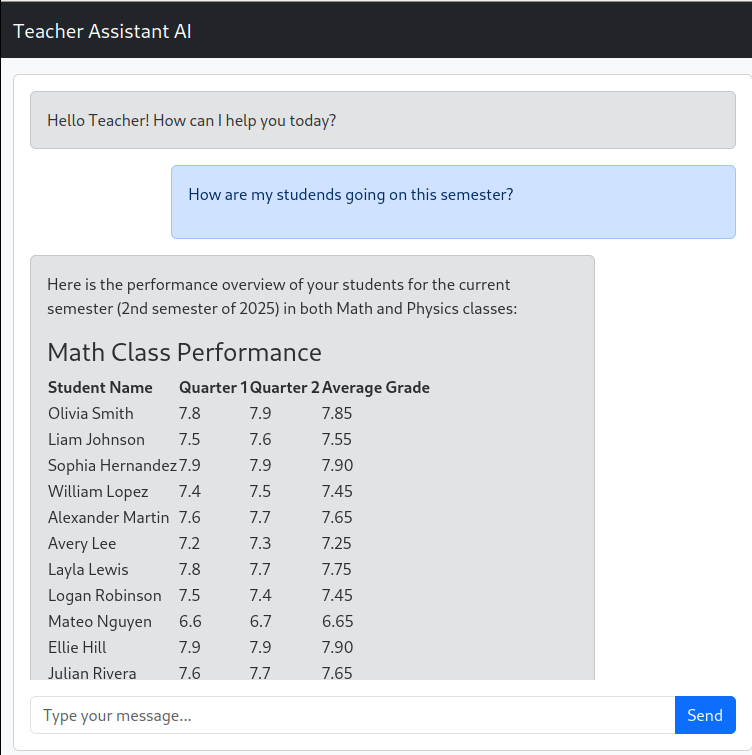

First Prompt, asking students performance

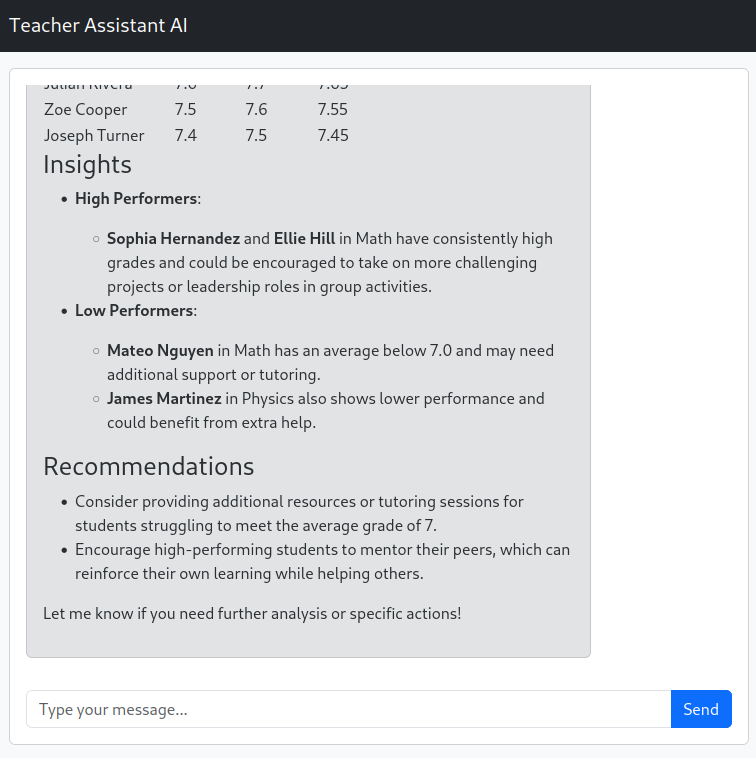

First Prompt, asking students performance, second part

Maybe Mateo Nguyen and James Martinez need some motivation, let's implement a feature to send an e-mail to them.

Implementing Third-party Tool Integration in LlamaIndex

We already have Google Authentication set up with the necessary grant to send emails. Once you log in your application with Auth0 and Google, Auth0 already stores Google's refresh token in the Token Vault. Now, we need to generate the Access Token with the correct grant to send emails.

Auth0 AI LlamaIndex library provides a simple way to do this and is already installed in the starter branch through Poetry. Let's discuss how to use it while we are implementing the feature.

Adding Context Variables to the Agent

First, we need to create a way to get the user's Auth0 refresh token to the library. Since LlammaIndex does not have a context object, we need to create one that handles variables between different functions but in the same request.

Let's create the file teacher_assistant/context.py:

touch teacher_assistant/context.py

Now, fill the following content:

from contextvars import ContextVar

agent_context = ContextVar("agent_context", default={})

def get_agent_context():
   return agent_context.get()

def clean_agent_context():
   agent_context.set({})

This module will provide a way to get the user's context and clean it after each request. A contextvar is a variable that is shared between different functions, even using asyncio.

Change the function run_agent in teacher_assistant/llm/llama_index_agent.py to:

async def run_agent(user_input: str, chat_id: str, refresh_token: str):
   try:
       context = get_agent_context()
       context["refresh_token"] = refresh_token
       memory = await _get_memory(chat_id)
       return await _agent.run(user_msg=user_input, memory=memory)
   finally:
       clean_agent_context()

This will allow us to get the user's refresh token and store it in the context. The refresh token will be available for all LlammaIndex tools we've implemented.

Now, we need to pass the refresh token to this function, change query_genai function teacher_assistant/main.py file to the following:

@app.post("/prompt")
async def query_genai(
   data: Prompt,
   request: Request,
   auth_session=Depends(auth_client.require_session),
):
   chat_id = get_chat_id(request)

   result = await run_agent(
       data.prompt,
       refresh_token=auth_session.get("refresh_token"),
       chat_id=chat_id,
   )
   return {"response": result.response.content}

Note: in both files, remember to import the necessary modules.

Now, we can implement the mail send feature.

Sending Emails

First, create a file called "send_email.py" in the teacher_assistant/llm/ folder.

touch teacher_assistant/llm/send_email.py

Now, let's add the imports for this file:

import base64
from email.mime.text import MIMEText

import requests
from auth0_ai.authorizers.federated_connection_authorizer import (
   get_access_token_for_connection,
)
from auth0_ai_llamaindex.auth0_ai import Auth0AI
from dotenv import load_dotenv
from llama_index.core.tools import FunctionTool
from openai import BaseModel
from pydantic import Field

from teacher_assistant.llm.context import get_agent_context

load_dotenv()
auth0_ai = Auth0AI()

Some highlights:

auth0_ai_llamaindex.auth0_ai is the library we installed with poetry and will help us to generate the access token for the user. The library simplifies authentication flow integration with LlamaIndex.
get_access_token_for_connection is a function from the library that will generate the access token for the third-party service for us.
get_agent_context will help us get the user's Auth0 refresh token.
auth0_ai is the Auth0 client we created. It loads the environment variables from the .env file to automatically configure the client.

The next step is to configure the library:

def refresh_token(**kwargs):
   return get_agent_context()["refresh_token"]

with_send_email_gmail = auth0_ai.with_federated_connection(
   connection="google-oauth2",
   scopes=["https://www.googleapis.com/auth/gmail.send"],
   refresh_token=refresh_token,
)

The refresh_token function will be called every time the library needs to generate a new access token for the third-party service. The auth0_ai.with_federated_connection function will create a new tool that will use the refresh token to generate a new access token for the third-party service. This function receives the connection name and the scopes that the tool will need.

Following, we create the sending email function:

def send_email(to_email: str, subject: str, body: str) -> str:
   try:
       gmail_access_token = get_access_token_for_connection()
       message = MIMEText(body)
       message["to"] = to_email
       message["subject"] = subject
       raw_message = base64.urlsafe_b64encode(message.as_bytes()).decode("utf-8")
       response = requests.post(
           "https://gmail.googleapis.com/gmail/v1/users/me/messages/send",
           headers={
               "Authorization": f"Bearer {gmail_access_token}",
               "Content-Type": "application/json",
           },
           json={"raw": raw_message},
       )
       response.raise_for_status()
       sent_message = response.json()
       return (
           f"Email sent successfully to {to_email}. Message ID: {sent_message['id']}"
       )
   except Exception as e:
       return f"Unexpected error sending email: {e}"

This function uses Google's Gmail API to send an email, the highlight here is the get_access_token_for_connection function. This function will generate a new access token for the Google Gmail API using the refresh token stored in the context. Hidden in the library, every time an access token is needed, the library will call Auth0 servers to generate a new access token with the selected scopes.

Finally, we create a LlamaIndex tool that will use the send_email function:

class StudentEmailArgs(BaseModel):
   email: str = Field(..., description="Email of the student")
   subject: str = Field(..., description="Subject of the email")
   body: str = Field(..., description="Message to the student")

def send_email_to_student(
       email: str,
       subject: str,
       body: str,
) -> str:
   return send_email(
       to_email=email,
       subject=subject,
       body=body,
   )

send_email_to_student_tool = with_send_email_gmail(FunctionTool.from_defaults(
   name="send_email_to_student",
   description="Send email to students",
   fn=send_email_to_student,
   fn_schema=StudentEmailArgs
))

Before running the application, we must add the tool to the agent. Edit the file teacher_assistant/llm/llama_index_agent.py and add the tool to the agent (remember to import the tool):

__TOOLS = [
   list_teaching_classes,
   list_students,
   get_student,
   get_teaching_class,
   send_email_to_student_tool
]

Also, you should improve the system prompt to improve the LLM correctness:

__SYSTEM_MESSAGE_PREFIX = f"""
   You are a grading and teacher assistant. You are able to check teaching classes, students and grades. Keep in mind that:
   * Each class has three evaluations, one for each quarter. At the end, the average grade is calculated and must be
   7 at least.
   * Your main objective is to help the teacher analyze their classes and students and give insights about them,
   and how to improve them.
   * When speaking with the teacher, always provide students names.
   * Current year is {_current_year} and current semester is {_current_semester}.
   * The current semester may not have all grades yet as the students are still in the class. Your main goal is to advise the
   teacher about low performances that need better assistance, and high performances that the teacher can improve.
   * Use markdown tables for displaying data
   * When asked by the teacher, you can send emails for the students following the teacher's instructions. All the
   student data like full name and destination email should be retrieved from the database as the teacher does not have
   this information
"""

Now, you can test the application again.

poetry run uvicorn main:app --reload

Note: Since we are testing the application, you should change the student's email to your own in the file teacher_assistant/grades/data.py.

Now, ask the tool to help Mateo:

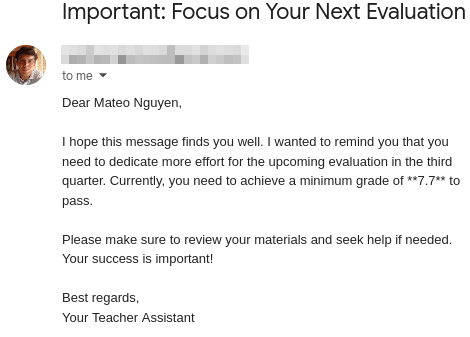

Now check Mateo’s e-mail (which you should have changed before the test…)

Note: if something is not working, you can check the update code at step2-thirdparty-tool-integration branch.

Recap

The article explains how to extend an existing LlamaIndex-based teacher assistant to call third-party tools on behalf of the logged-in user using Auth0’s Token Vault. It contrasts system-level tool calling (app-scoped credentials) with user-level tool calling (acting on a user’s behalf via OAuth 2.0), highlighting why the latter is essential for actions like sending emails that should reflect the user’s identity. Using Auth0 with Google as a social connection, Token Vault securely stores refresh tokens and issues scoped access tokens as needed, avoiding exposure of sensitive credentials to the LLM. The setup covers configuring Google OAuth with the Gmail.Send scope, enabling Token Exchange (Federated Connection) in Auth0, and preparing environment variables and dependencies.

On the application side, the workflow passes the user’s refresh token through request-scoped context so tools can fetch short-lived access tokens just-in-time. With the Auth0 AI LlamaIndex SDK, the agent new tool is capable of sending emails via the Gmail API, allowing the assistant to generate and deliver motivational or warning messages to students as if sent by the teacher. After wiring the tool into the agent and refining the system prompt to guide behavior, the result is a secure, auditable user-level action pipeline: the LLM orchestrates intent and content, Auth0 manages token exchange and storage, and Gmail executes the final delivery under the user’s identity.
