Multi-Factor Authentication Email screen classes

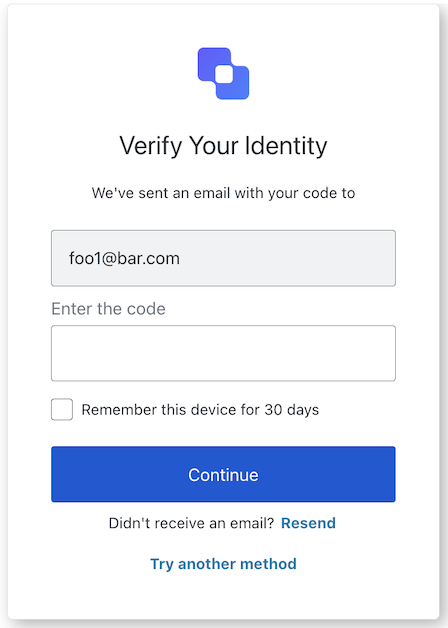

MFA Email Challenge screen class

The MFA Email Challenge screen class allows users to verify their email address using MFA.

Import and instantiate the MFA Email Challenge screen class:

import MfaEmailChallenge from '@auth0/auth0-acul-js/mfa-email-challenge';
const mfaEmailChallengeManager = new MfaEmailChallenge();

// SDK Properties return a string, number or boolean
// ex. "login-id"
mfaDetectBrowserCapabilitiesManager.screen.name;

// SDK Methods return an object or array
// ex. { signup: "/signup_url", reset_password: "/reset_password_url"}
await mfaEmailChallenge.continue({
  code: '123456',
   rememberDevice: true
});

feedbackSection.helpful

Properties

The MFA Email Challenge screen class properties are:

interface branding {
  settings: null | BrandingSettings;
  themes: null | BrandingThemes;
}

interface BrandingSettings {
  colors?: {
    pageBackground?: string | {
      angleDeg: number;
      end: string;
      start: string;
      type: string;
    };
    primary?: string;
  };
  faviconUrl?: string;
  font?: {url: string;};
  logoUrl?: string;
}

interface BrandingThemes {
  default: {
    borders: Record<string, string | number | boolean>;
    colors: Record<string, string>;
    displayName: string;
    fonts: Record<string, string | boolean | object>;
    pageBackground: Record<string, string>;
    widget: Record<string, string | number>;
  };
}

feedbackSection.helpful

interface client {
  description: null | string;
  id: string;
  logoUrl: null | string;
  name: string;
  metadata: null | {[key: string]: string;};
}

feedbackSection.helpful

interface organization {
  branding: null | {
    colors?: {
      pageBackground?: string;
      primary?: string;
    };
    logoUrl?: string;
  };
  displayName: null | string;
  id: null | string;
  metadata: null | {[key: string]: string;};
  name: null | string;
  usage: null | string;
}

feedbackSection.helpful

interface prompt{
  name: string;
}

feedbackSection.helpful

interface screen {
  captcha: null | CaptchaContext;
  captchaImage: null | string;
  captchaProvider: null | string;
  captchaSiteKey: null | string;
  data: null | {
    email: string;
    remember_device?: boolean;
  };
  isCaptchaAvailable: boolean;
  links: null | Record<string, string>;
  name: string;
  texts: null | Record<string, string>;
}

interface CaptchaContext {
  image?: string;
  provider: string;
  siteKey?: string;
}

feedbackSection.helpful

interface tenant {
  enabledFactors: null | string[];
  enabledLocales: null | string[];
  friendlyName: null | string;
  name: null | string;
}

feedbackSection.helpful

interface transaction {
  alternateConnections: null | (Connection | EnterpriseConnection)[];
  connectionStrategy: null | string;
  countryCode: null | string;
  countryPrefix: null | string;
  currentConnection: null | Connection;
  errors: null | Error[];
  hasErrors: boolean;
  locale: string;
  state: string;
}

interface Connection {
  metadata?: Record<string, string>;
  name: string;
  strategy: string;
}

interface EnterpriseConnection {
  metadata?: Record<string, string>;
  name: string;
  options: {
    displayName?: string;
    iconUrl?: string;
    showAsButton: boolean;
  };
  strategy: string;
}

feedbackSection.helpful

interface untrustedData {
  authorizationParams: null | {
    login_hint?: string;
    screen_hint?: string;
    ui_locales?: string;
    [key: `ext-${string}`]: string;
  };
  submittedFormData: null | {
    [key: string]:
        | string
        | number
        | boolean
        | undefined;
  };
}

feedbackSection.helpful

interface user {
  appMetadata: null | {[key: string]: string;};
  email: null | string;
  enrolledDevices: null | string[];
  enrolledEmails: null | string[];
  enrolledFactors: null | string[];
  enrolledPhoneNumbers: null | string[];
  id: null | string;
  organizations: null | {
    branding: undefined | {logoUrl: undefined | string;};
    displayName: undefined | string;
    organizationId: undefined | string;
    organizationName: undefined | string;
  }[];
  phoneNumber: null | string;
  picture: null | string;
  userMetadata: null | {[key: string]: string;};
  username: null | string;
}

feedbackSection.helpful

Methods

The MFA Email Challenge screen class method are:

continue( options ?)

This method continues with the email challenge using the provided code.

import MfaEmailChallenge from '@auth0/auth0-acul-js/mfa-email-challenge';

const mfaEmailChallenge = new MfaEmailChallenge();
await mfaEmailChallenge.continue({
  code: '123456',
  rememberDevice: true
});

feedbackSection.helpful

Parameter	Type	Required	Description
`code`	string	yes	Code entered by user.
`rememberDevice`	boolean	No	Remember user's device.
`[key: string]`	string \| number \| boolean \| undefined	No	Optional data collected from user.

pickEmail( options ?)

This method allows the user to select other emails, if available.

import MfaEmailChallenge from '@auth0/auth0-acul-js/mfa-email-challenge';

const mfaEmailChallenge = new MfaEmailChallenge();
await mfaEmailChallenge.pickEmail();

feedbackSection.helpful

Parameter	Type	Required	Description
`[key: string]`	string \| number \| boolean \| undefined	No	Optional data collected from user.

resendCode( options ?)

This method resends email code.

import MfaEmailChallenge from '@auth0/auth0-acul-js/mfa-email-challenge';

const mfaEmailChallenge = new MfaEmailChallenge();
await mfaEmailChallenge.resendCode();

feedbackSection.helpful

Parameter	Type	Required	Description
`[key: string]`	string \| number \| boolean \| undefined	No	Optional data collected from user.

tryAnotherMethod( options ?)

This method allows the user to select another MFA option.

import MfaEmailChallenge from '@auth0/auth0-acul-js/mfa-email-challenge';

const mfaEmailChallenge = new MfaEmailChallenge();
await mfaEmailChallenge.tryAnotherMethod();

feedbackSection.helpful

Parameter	Type	Required	Description
`[key: string]`	string \| number \| boolean \| undefined	No	Optional data collected from user.

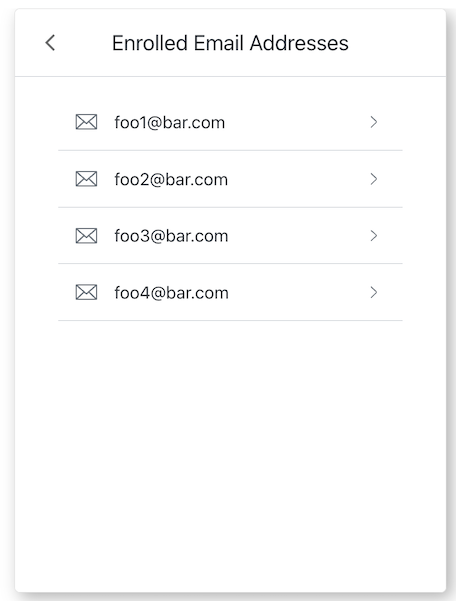

MFA Email List screen class

The MFA Email List screen class allows users to select an enrolled email address for MFA.

Import and instantiate the MFA Email List screen class:

import MfaEmailList from '@auth0/auth0-acul-js/mfa-email-list';
const mfaEmailList = new MfaEmailList();

// SDK Properties return a string, number or boolean
// ex. "login-id"
mfaEmailList.screen.name;

// SDK Methods return an object or array
await mfaEmailList.selectMfaEmail({
index: 0 // for demonstration we are selecting the first index
});

feedbackSection.helpful

Properties

The MFA Email List screen class properties are:

interface branding {
  settings: null | BrandingSettings;
  themes: null | BrandingThemes;
}

interface BrandingSettings {
  colors?: {
    pageBackground?: string | {
      angleDeg: number;
      end: string;
      start: string;
      type: string;
    };
    primary?: string;
  };
  faviconUrl?: string;
  font?: {url: string;};
  logoUrl?: string;
}

interface BrandingThemes {
  default: {
    borders: Record<string, string | number | boolean>;
    colors: Record<string, string>;
    displayName: string;
    fonts: Record<string, string | boolean | object>;
    pageBackground: Record<string, string>;
    widget: Record<string, string | number>;
  };
}

feedbackSection.helpful

interface client {
  description: null | string;
  id: string;
  logoUrl: null | string;
  name: string;
  metadata: null | {[key: string]: string;};
}

feedbackSection.helpful

interface organization {
  branding: null | {
    colors?: {
      pageBackground?: string;
      primary?: string;
    };
    logoUrl?: string;
  };
  displayName: null | string;
  id: null | string;
  metadata: null | {[key: string]: string;};
  name: null | string;
  usage: null | string;
}

feedbackSection.helpful

interface prompt{
  name: string;
}

feedbackSection.helpful

interface screen {
  captcha: null | CaptchaContext;
  captchaImage: null | string;
  captchaProvider: null | string;
  captchaSiteKey: null | string;
  data: null | Record<string,
      | string
      | boolean
      | string[]
      | PhonePrefix[]>;
  isCaptchaAvailable: boolean;
  links: null | Record<string, string>;
  name: string;
  texts: null | Record<string, string>;
}

interface CaptchaContext {
  image?: string;
  provider: string;
  siteKey?: string;
}

interface PhonePrefix {
  country: string;
  country_code: string;
  phone_prefix: string;
}

feedbackSection.helpful

interface tenant {
  enabledFactors: null | string[];
  enabledLocales: null | string[];
  friendlyName: null | string;
  name: null | string;
}

feedbackSection.helpful

interface transaction {
  alternateConnections: null | (Connection | EnterpriseConnection)[];
  connectionStrategy: null | string;
  countryCode: null | string;
  countryPrefix: null | string;
  currentConnection: null | Connection;
  errors: null | Error[];
  hasErrors: boolean;
  locale: string;
  state: string;
}

interface Connection {
  metadata?: Record<string, string>;
  name: string;
  strategy: string;
}

interface EnterpriseConnection {
  metadata?: Record<string, string>;
  name: string;
  options: {
    displayName?: string;
    iconUrl?: string;
    showAsButton: boolean;
  };
  strategy: string;
}

feedbackSection.helpful

interface untrustedData {
  authorizationParams: null | {
    login_hint?: string;
    screen_hint?: string;
    ui_locales?: string;
    [key: `ext-${string}`]: string;
  };
  submittedFormData: null | {
    [key: string]:
        | string
        | number
        | boolean
        | undefined;
  };
}

feedbackSection.helpful

interface user {
  appMetadata: null | {[key: string]: string;};
  email: null | string;
  enrolledDevices: null | string[];
  enrolledEmails: null | string[];
  enrolledFactors: null | string[];
  enrolledPhoneNumbers: null | string[];
  id: null | string;
  organizations: null | {
    branding: undefined | {logoUrl: undefined | string;};
    displayName: undefined | string;
    organizationId: undefined | string;
    organizationName: undefined | string;
  }[];
  phoneNumber: null | string;
  picture: null | string;
  userMetadata: null | {[key: string]: string;};
  username: null | string;
}

feedbackSection.helpful

Methods

The MFA Email List screen class method are:

goBack( options ?)

This method allows the user to navigate to previous screen.

import MfaEmailList from '@auth0/auth0-acul-js/mfa-email-list';

const mfaEmailList = new MfaEmailList();
await mfaEmailList.goBack();

feedbackSection.helpful

Parameter	Type	Required	Description
`[key: string]`	string \| number \| boolean \| undefined	No	Optional data collected from user.

selectMfaEmail( options ?)

This method allows the user to select from a list of enrolled email address.

import MfaEmailList from '@auth0/auth0-acul-js/mfa-email-list';

const mfaEmailList = new MfaEmailList();
await mfaEmailList.selectMfaEmail({
  index: 0 // for demonstration we are selecting the first index
});

feedbackSection.helpful

Parameter	Type	Required	Description
`index`	number	Yes	The index of the email address to select.
`[key: string]`	string \| number \| boolean \| undefined	No	Optional data collected from user.
